JAYPEE BUILDER HOIST

200000 INR/Set

Get a Price/Quote

Product Details:

Lifting Speed 30 m/m
Lifting Height 40 Meter (m)
Motor Power 10 Horsepower (HP)
Product Type Construction Hoist
Material Steel
Type Cement Mixer
Capacity 1 Ton
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

JAYPEE BUILDER HOIST Price And Quantity

Minimum Order Quantity 1 Set
Price Range 200000.00 - 300000.00 INR/Set
Price 200000 INR/Set

JAYPEE BUILDER HOIST Product Specifications

Warranty 1
Computerized No
Motor Power 10 Horsepower (HP)
Voltage 415 Volt (v)
Color Red
Cooling System Other
Method Other
Weight (kg) 750 Kilograms (kg)
Product Type Construction Hoist
Control System Manual
Lifting Height 40 Meter (m)
Type Cement Mixer
Capacity 1 Ton
Feature Maximum Working Height 40 Meter
Automatic No
Dimension (L*W*H) 426.72 X 198.12 X 152.4 Centimeter (cm)
Lifting Speed 30 m/m
Material Steel

JAYPEE BUILDER HOIST Trade Information

FOB Port Kolkata
Payment Terms Cash on Delivery (COD) Cash Advance (CA)
Supply Ability 100 Set Per Week
Delivery Time 1 Week
Main Export Market(s) Asia Australia Western Europe Middle East Africa
Main Domestic Market All India
Certifications CE & ISO 9001

Product Description

JAYPEE Builder Hoist is specially designed to lift material to various heights at Construction Sites.

Specifications:

Mast Type: Square Mast
Wire Rope Length: 12 mm
Chassis: 1540 X 620 mm
Trolley: Heavy Duty MS channel with guide rollers
Bucket Capacity: 10 cm3
Power Rating: 10 HP electric motor or 10 HP diesel engine

Benefits & Features

Diesel Engine or Electric Motor Drive
Extra capacity winch for greater safety aspects
Drive through Fraction rollers
Safety braking device

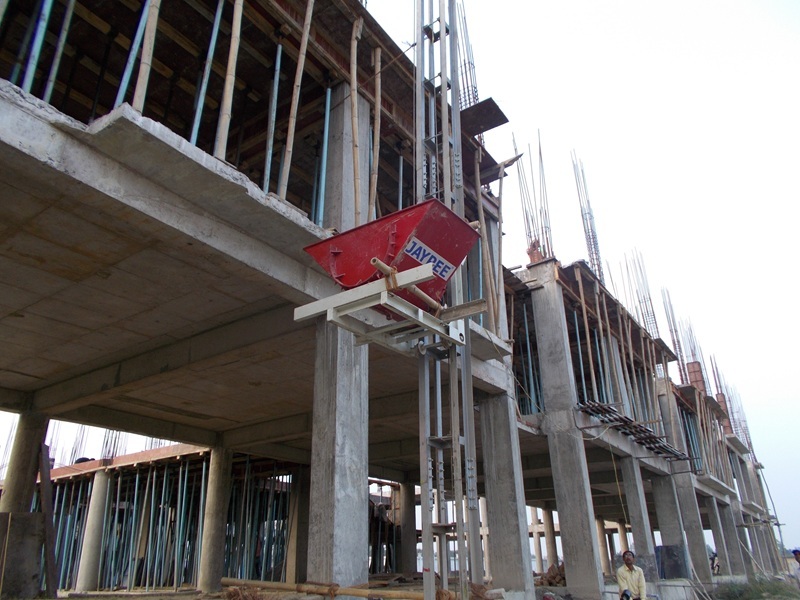

Jaypee Tower Hoist / Builder Hoist is specially designed to lift material to various heights at Construction Sites.

Most of the structure is fabricated in 3m length for easy transportation and assembling at site. With the use of high quality fabrication and anti twisting straightened steel, the mast sections are built for a longer life span.

Jaypee has successfully erected a 2 ton winch upto a height of 140mts.

Model	BH - 1000 E	BH - 1000 D	BH - 2000 E	BH - 2000 D
Capacity	1 Ton	1 Ton	2 Ton	2 Ton
Material Carrying Capacity	750 Kg	750 Kg	1500 Kg	1500 Kg
Mast Type	Square Mast	Square Mast	Square Mast	Square Mast
Wire Rope	10 mm, 6 Core Steel Wire	10 mm, 6 Core Steel Wire	12 mm, 6 Core Steel Wire	12 mm, 6 Core Steel Wire
Trolley	Heavey Duty MS Channel With Guide Rollers	Heavey Duty MS Channel With Guide Rollers	Heavey Duty MS Channel With Guide Rollers	Heavey Duty MS Channel With Guide Rollers
Bucket Volume	0.3 m3	0.3 m3	0.4 m3	0.4 m3
Maximum Working Height	100 m	40 m	125 m	70 m
Power Rating	10 HP Electric Motor	10 HP Deisel Engine	15 HP Electric Motor	16 HP Diesel Engine
