Pioneers in manufacturing of construction equipments since 1982.

Latest in hoisting solutions by Jaypee the MFTH series is a multi functional equipment for all your hoisting needs. The hoist can be used for carrying concrete and also finishing materials such as tiles, fittings, etc. With an optional rebar carrying attachment, users can now eliminate the need for the installation of tower cranes at the site. Multi-Function Tower Hoist is a man and materials handling machine which is used for all hoisting needs. It is widely used for carrying concrete and other materials such as tiles, fittings, etc. It can also be used in inventories for shifting materials from grounds to storing racks. The support stand is manufactured by using top grade engineering materials which increases the strength and rigidity of the structural frame. Multi Function Tower Hoist is also provided with a rebar carrying attachment which allows the user to eliminate the need for installation of tower cranes at the site. It is also equipped with an emergency brake unit which helps to prevent any accident when the rope is broken.

Jaypee ABP 18 combines all ingredients like cement, sand, admixture & aggregates to produce concrete. The final product is then transported to the job site by concrete pumps and transit mixers. Our automatic batching plant provides concrete with remarkably good consistency. It has compartments to hold sand and different grades of gravel. It has got a reversible drum mixer, to mix cement brought through a screw conveyer and ad-mixture along with water from a storage facility at the top. The entire recipe can be monitored and controlled remotely. The load cells, on each hopper measure and detects an input, and prompt the operator to determine whether to activate the control of stirring sand & gravel or start a screw conveyer bringing cement to the mixer. Todays construction industry increasingly requires consistency, homogeneity and short mixing times in industrial construction, giving our batching plant an edge over others in indigienity and longevity. It is suitable for construction sites where there is a scarcity of labor & prevailing underfoot conditions are only suitable for earth movers.

Jaypee Reversible drum Concrete Mixer has become the most reliable for quality output and maintenance free operation. One of the most widely used machine tools is the Automatic Batching Plant -18 (Reversible Drum), They are the typical reversible type concrete mixer where concreting is done using a revolving drum. Designed to deliver sturdy construction a reversible drum mixer is a well engineered piece of construction machinery for carrying mixing mortar to place where it is to be poured. It also gives enough time to the workers to mix the composition before the concrete hardens.

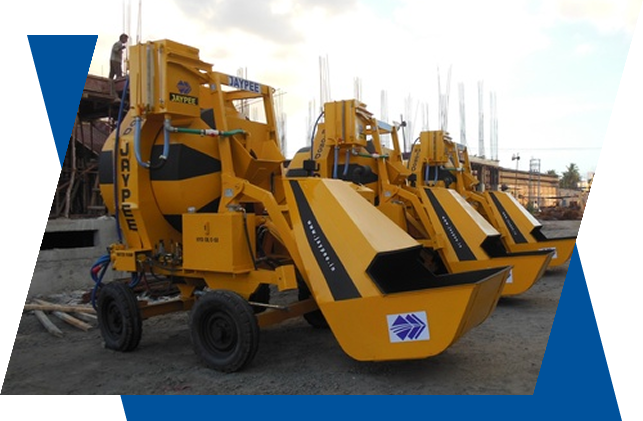

Jaypee Reverse Drum Mixer is one of the reliable and durable machine tools used for mixing concrete to form a uniform mixture. It is ideally designed using high-quality raw materials and advanced technologies to ensure sturdy construction. This well-engineered piece of construction machinery carries mixing mortar from one place to another to uniformly mix the composition before the concrete hardens. This specialized construction equipment is ideal to mix concrete, sand, cement, and other aggregates and take it from the batching plant to the construction site. This Jaypee Reverse Drum Mixer is used in the development of dams, canals, buildings, highways, and so on.

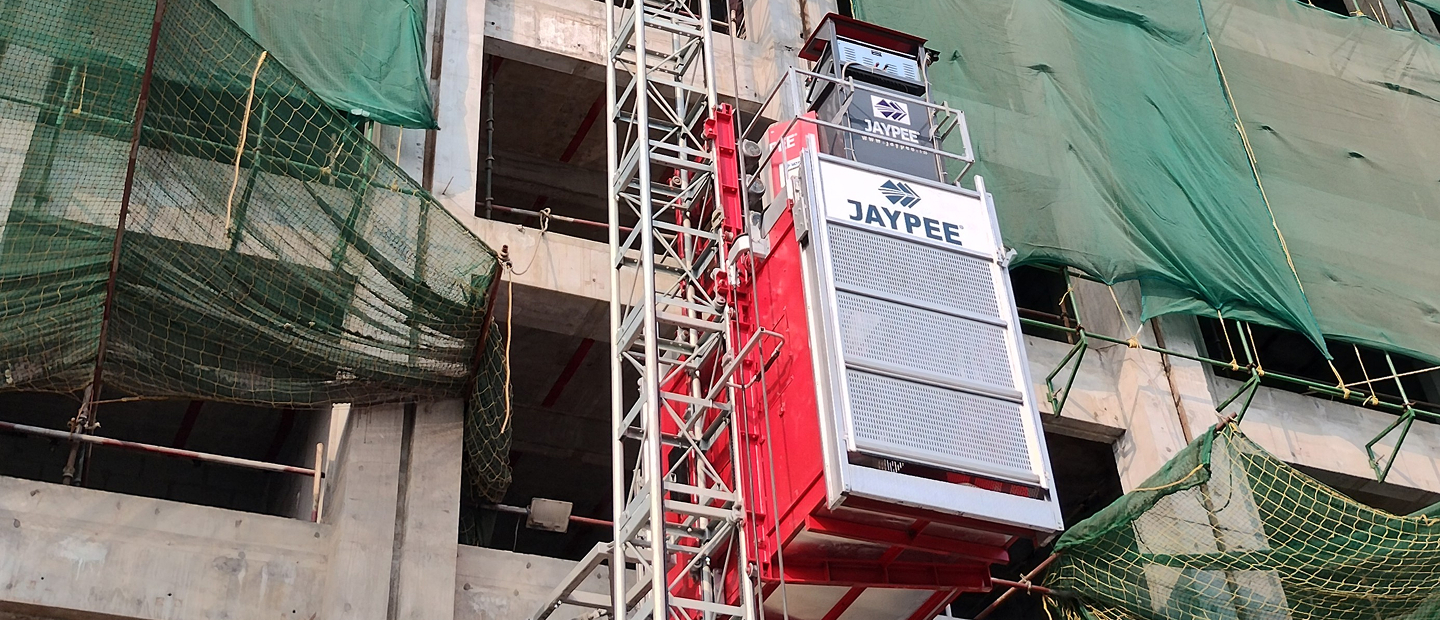

As a part of Man and Material Handling Solutions, Jaypee brings to your interest a wide range of Passenger and Materials hoists. Brought to your service is a range that can lift up to 8000kg, with a lifting speed that can reach up to 96m/min and an attainable max. erecting height of 450m. These Productss can be used in various construction sites, power projects, metallurgical, mining, oil and chemical industries. Our Construction Hoists feature high quality materials and Productss and components from world renowned manufacturers. The Rack and Pinion adopts a specially processed material and heat treatment technique, prolonging the life of these parts. The mast section surface can be finished with paint spray, Parkerizing baking finish or hot galvanizing processing as per user requirements. Frequency Conversion Hoist To serve the increasing demand for high-rise construction we offer the high speed VF hoist, with a max. lifting speed of 96m per min. A few salient features of these hoists are Adopts the most advanced VF speed control device and microcomputer programmable logic controller. Step-less speed control helps eliminate the concussion during start-up and braking, steadies the operation and ensures automated leveling. Adopts open loop VF control; the speed precision can reach 2 to 3%. Realising the accurate low speed positioning of the hoist, thus avoiding slipping during downward stopping of the hoist. The VF system has current restriction function, suring lower current in motor start-up and reduces the concussion to power supply. This reduces the energy consumption are site. The steadiness during operation, mitigates concussion to mechanical parts, reduces wears of rack, pinion and the brake, prolonging the life of these parts. The VF system also has the over voltage protection, low-voltage protection, over current, overload and anti stalling protection functions.

Jaypee now brings to India the most advanced Rope Suspended Platform Hoist. With features like safety lock model, advanced Electrical control system with anti-tilting, rope break, high quality steel wire rope and optional overload sensor. Also referred to as Gondola, these hoists are used for maintenance and decoration of the outer parts of high rise buildings. A Rope Suspended Platform Hoist can also be described as a temporary structure attached to the building for alteration and demolition of the construction. Gondolas are widely used for repairing work, maintenance of a building, installing the billboards on high rise towers, welding, cleaning and painting for large ships and more. Jaypee India uses high quality materials like stainless steel and aluminium to manufacture these suspended rope platform hoists. A stringent quality check is done to ensure the strength parameters and provide just the very best to the customers. The suspended rope platform hoist from Jaypee, one of the leading platform hoist exporter, comes with some unique features to support the growing demands of the contractors and engineers. These Rope Suspended Platform Hoists from Jaypee come in three unique models to meet the unique site requirements. These different models of the equipment vary in size, loading capacity and speed.

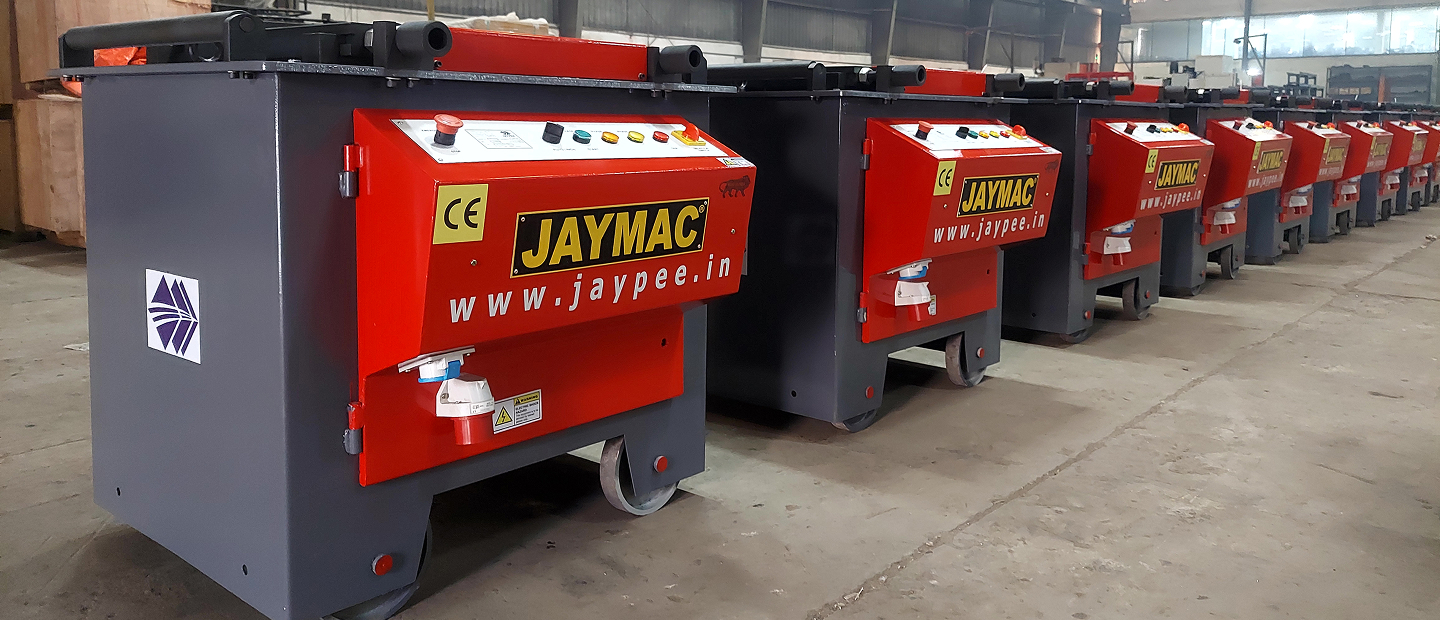

Bar Bending Machine is a semi automatic, durable fast and cost effective machine, used for bending reinforcement bars and various forms of round bars. We are branded for our excellent quality of raw materials used in the manufacturing process of Rebar Bending Machines as well as outstanding after sales service for the aforementioned product.

We have carved the niche by manufacturing and supplying our wide range of Automatic Batching Plants. This plant is manufactured by our expert personnel using the best quality materials in accordance with the industry standard. This batching plant is an automatic plant that is used with a mixer to batch the sand, pebble, and cement. This batching plant is used for the construction of dams, roads, airports, bridges, ports, and buildings.

Automatic batching Plant by Jaypee provides a cost effective complete concrete producing solution. The innovative design of the plant with reversible type provides and low cost transportation, easy assembling and dismantling capability. Automatic Batching Plant employ computer aided control to assist in speedy and precise measurements of input and output aided by load cell.

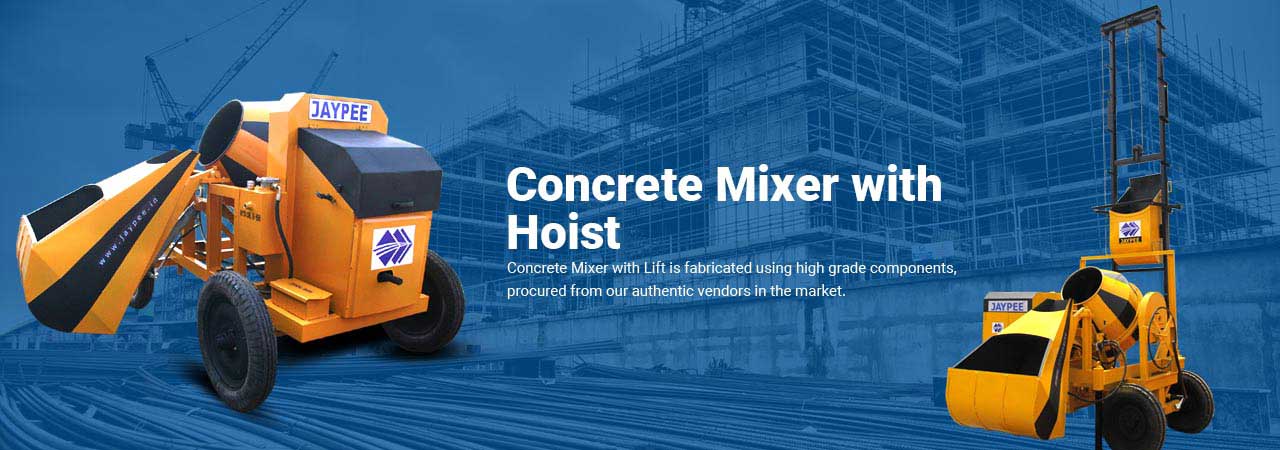

We are one of the well established names in this domain, engaged in manufacturing, supplying and exporting superior grade Concrete Lift Machine. Concrete Mixer with Lift offered by us is fabricated using high grade components, procured from our authentic vendors in the market. We also use the most innovative technology and hi-tech machines to manufacture this product. Made as per the prevailing norms and regulations of the industry, our offered concrete mixers are widely appreciated in various construction and allied industries. The concrete lift machines are manufactured at Jaypee adhering to IS 1791:1968. These concrete lifts undergo extensive quality tests prior to delivery and hence there are negligible chances of getting faulty concrete machine lift. We offer our customer Concrete with Lift Mixer Machines that are acclaimed for rugged construction, essential for rough sites. This optimum performing and easy to operate machines is ideally suitable for mixing concrete and plaster of mortar. Concrete lift machine has the ability of melt stirring and lifting. Through the different height of ladder, the hoisting machine and carriage, the concrete inside lifting bucket can be promoted to different floors. The lifting concrete has the advantages of easy operation, reduced labor and material consumption; shorten construction time and high construction efficiency. We are recognized as the manufacturer and supplier of the superior quality Concrete Mixer Machine with Lifts. The offered product is manufactured using the finest quality raw material and cutting-edge technology. This product is examined by our quality controllers on set industry standards at our high end quality testing unit to eradicate all flaws. Moreover, we also offer this Concrete Mixer Machine with Lift in customized options at affordable prices.

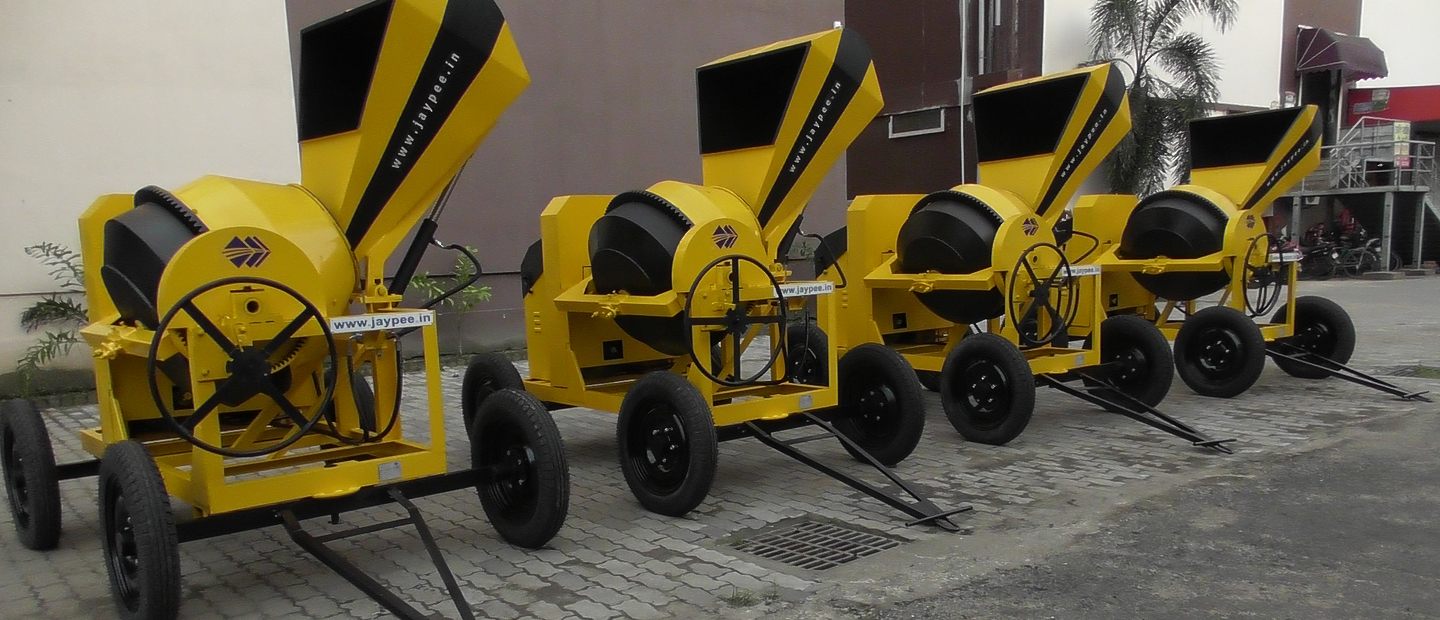

Jaypee Capacity Concrete Mixer is renowned for its robust build, rigidity, and long life. Adhering to IS 1791 and 1968 the mixer provides an uniform mix for reliable operation. A concrete mixer is popularly known as a cement mixer. The concrete mixers from Jaypee are used to mix cement, and aggregates like sand, gravel, and water to form quality concrete and form a strong base for buildings.

The Reversible Drum Automatic Batching Plant has a mixer output of 16 to 18 CUM per hr and a batch capacity of 0.56Cum. It has a batch mixing time of 120 sec per batch aided by a 15 HP geared motor. The control system either fully automatic or manual type. It has got a robust chassis made of steel frame. A 7.5 HP motor feeds aggregate from storage bins to the mixer via a 700 mm wide conveyor belt. A pneumatic control system facilitates the opening and closing of the gates. Cement from recharge hopper of capacity 250 kg is delivered by a screw conveyor of 220 mm diametre and 7 meter in length monitored by a I type load cell. Water dozing is from a 120 Ltr tank capacity powered by 1HP submersible pump monitored by a I type load cell. It has got a PLC based B and R control panel with pen drive for batch print. The total power consumption is 32.5 Kw with cement
