Jaypee Automatic Batching Plant 20 PAN Jaypee Automatic Batching Plant 20 PAN Jaypee Automatic Batching Plant 20 PAN Jaypee Automatic Batching Plant 20 PAN Jaypee Automatic Batching Plant 20 PAN Jaypee Automatic Batching Plant 20 PAN

Jaypee Automatic Batching Plant 20 PAN

2000000 INR/Set

Product Details:

  • Product Type Batching Plant
  • General Use Construction
  • Material Cast Iron
  • Weight (kg) 70600 Kilograms (kg)
  • Computerized Yes
  • Automatic Yes
  • Control System PLC Control
  • Click to view more
X

Jaypee Automatic Batching Plant 20 PAN Price And Quantity

  • 2000000 INR/Set
  • 1 Set

Jaypee Automatic Batching Plant 20 PAN Product Specifications

  • Batching Plant
  • 70600 Kilograms (kg)
  • Howrah Cubic Meter (m3)
  • PLC Control
  • Cast Iron
  • Construction
  • Yes
  • Electric
  • 32 RPM
  • 40 Kilowatt (kW)
  • Yes
  • 4 Unit
  • 1
  • Howrah Cubic Meter (m3)

Jaypee Automatic Batching Plant 20 PAN Trade Information

  • Kolkata
  • 10 Set Per Month
  • Days
  • Truck loaded
  • East India North India
  • CE AND TUV

Product Description

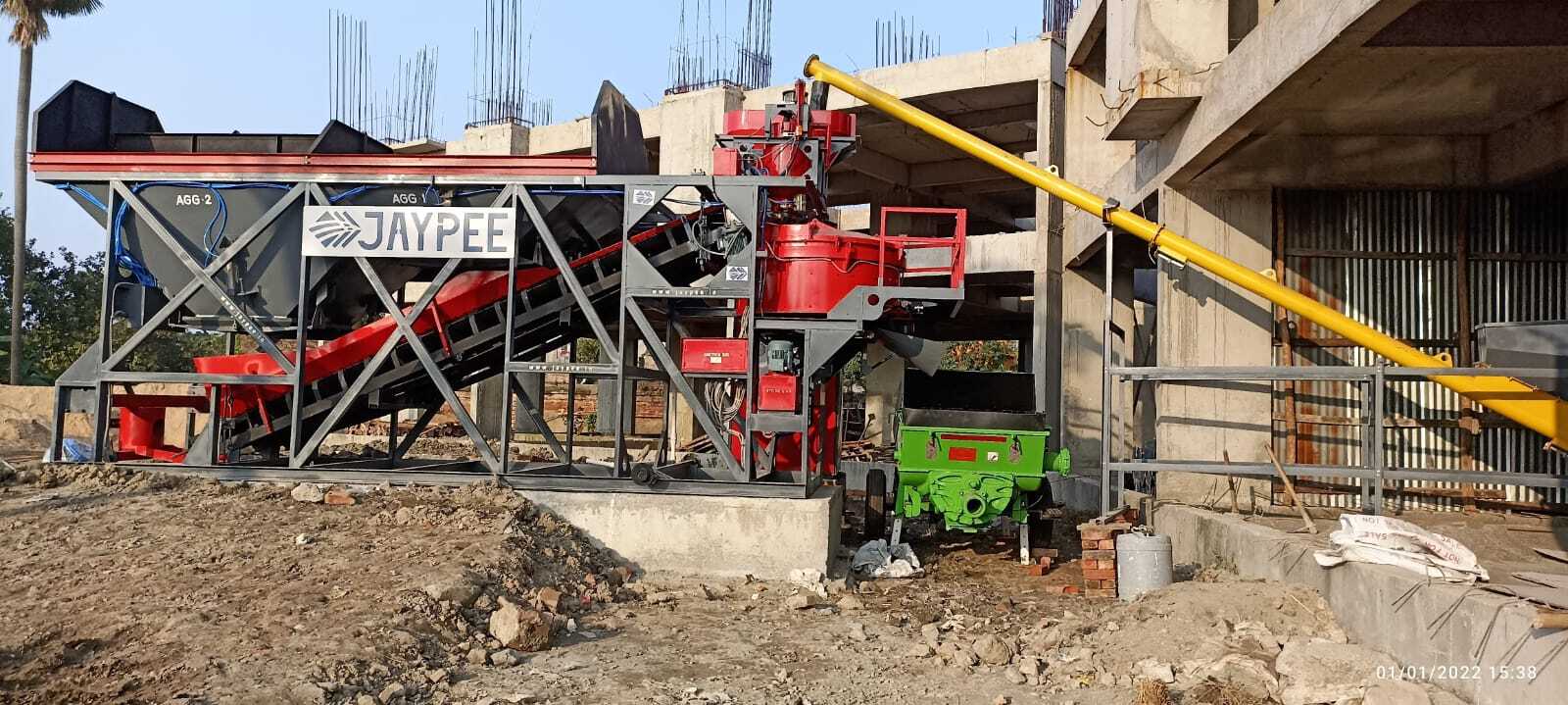

AUTOMATIC BATCHING PLANT-20 (PAN MIXER)

We are an eminent name in the market as a leading manufacturer and exporter of high performing Automatic Batching Plant that is extensively used in construction and engineering industries for concrete batching. The offered plant is manufactured using superior quality components under the guidance of our adept professionals. Our offered plant is tested by our quality analysts to ensure its functionality. Further, it is available in different capacities to meet the desired needs of our clients. Offered Automatic Batching Plant can be purchased from us at industry-leading prices. Automatic Batching Plant is a kind of automatic appliance, which can corollary use with mixer. According to customers demand, it can entire automatically batching the cement, sand, pebble etc.

Auto Batching Plant is a kind of automatic appliance, which can have corollary use with a mixer. According to customers demand, it can entirely automatically batch the cement, sand, pebbles etc. It is mainly applied in dams, roads, airports, bridges, ports and other large building engineering as well as build up commercial solid centers and other places requiring a large amount of concrete.


Auto Batching Plant Features:

1) Robust Design.
2) High Mobility.
3) User friendly.
4) High Performance.
5) Stairs for workers.
6) High Capacity Screw Pump.
7) Innovative modern Technology.
8) Low maintenance.
9) Low energy consumption.
10) Best available Compressor & Pneumatic valve.
11) Equipment Comply with installation standard.

Automatic Batching Plant Technical Specification:



Description ABP 20
Mixer Type Pan Mixer Type
Output 18 to 20 Cu Mt per hr
Batch Capacity 0.30Cum
Prime Mover (Mixer) 40 kW
Gear Ring Accurately Machine with Gear Cutting Operation
Guide Roller present to guide conveyor belt
Storage & Feeding System Cross Bin Storage & Feeding System
Storage Bin 4 Nos * 3CuM each
Gate Control Pneumatic Gates
Weighing Method Suspended Hopper
Aggregate Discharge to Mixer Cumulative Weight on Hopper
Water System Automatic Digitally Controlled Water Feeding System
Water Tank Capacity 120 L powered by 1 HP submersible pump
Admixture System Automatic Digitally Controlled Admixture Feeding System
Concrete Discharge Height 1.6 Metre.
Auto Cement Feeding System Screw Conveyor, 220 M diameter, 7 M length powered by 7.5 HP motor
Cement Storage Bin Capacity 250 Kg
Air Compressor Include
