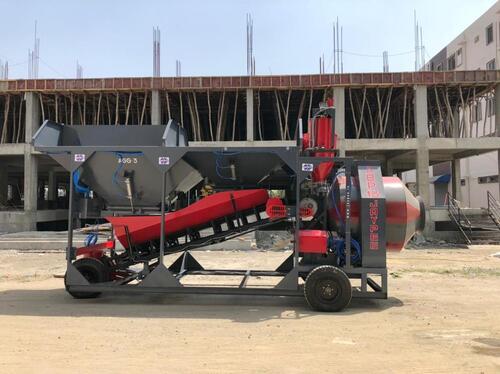

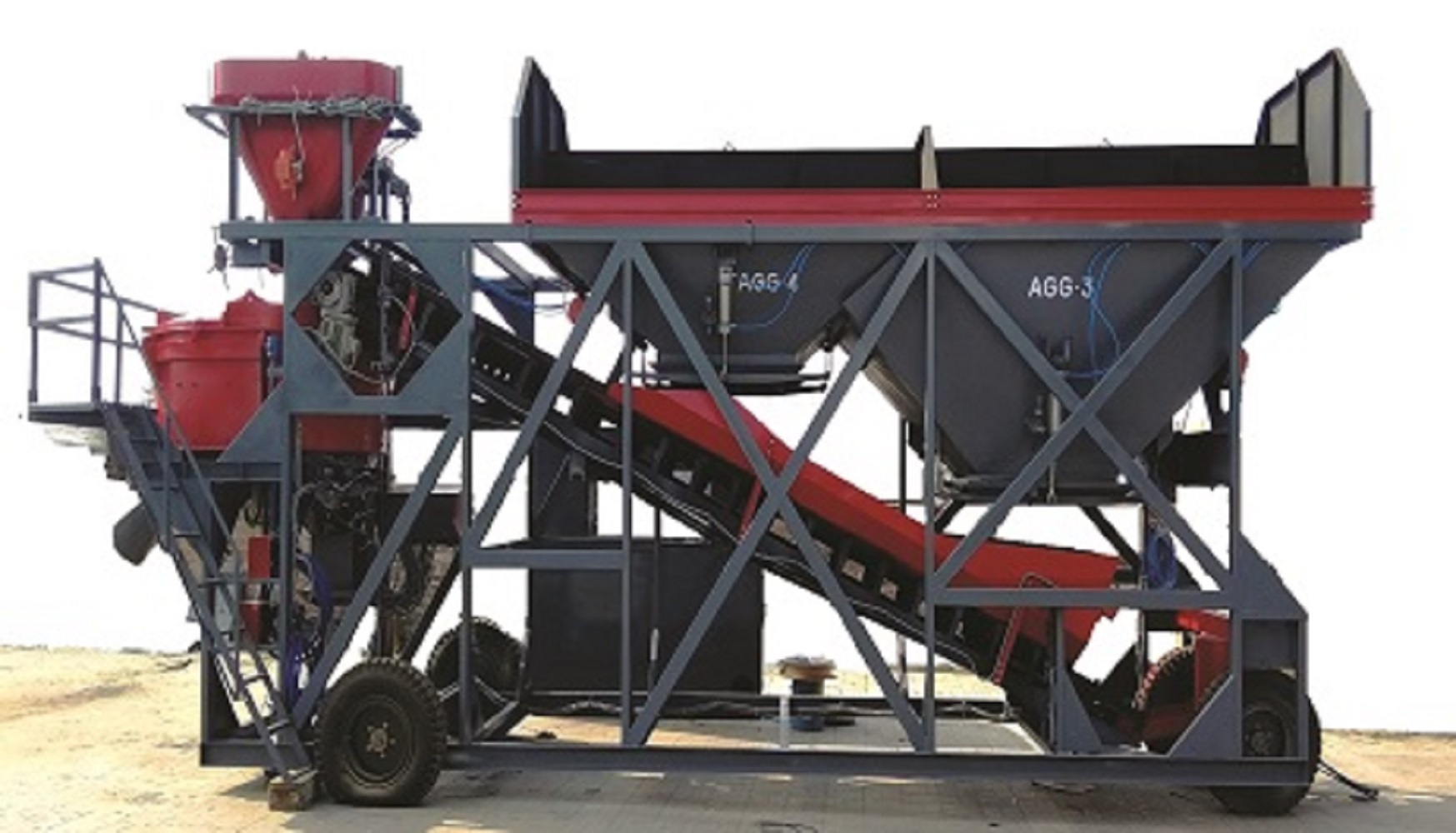

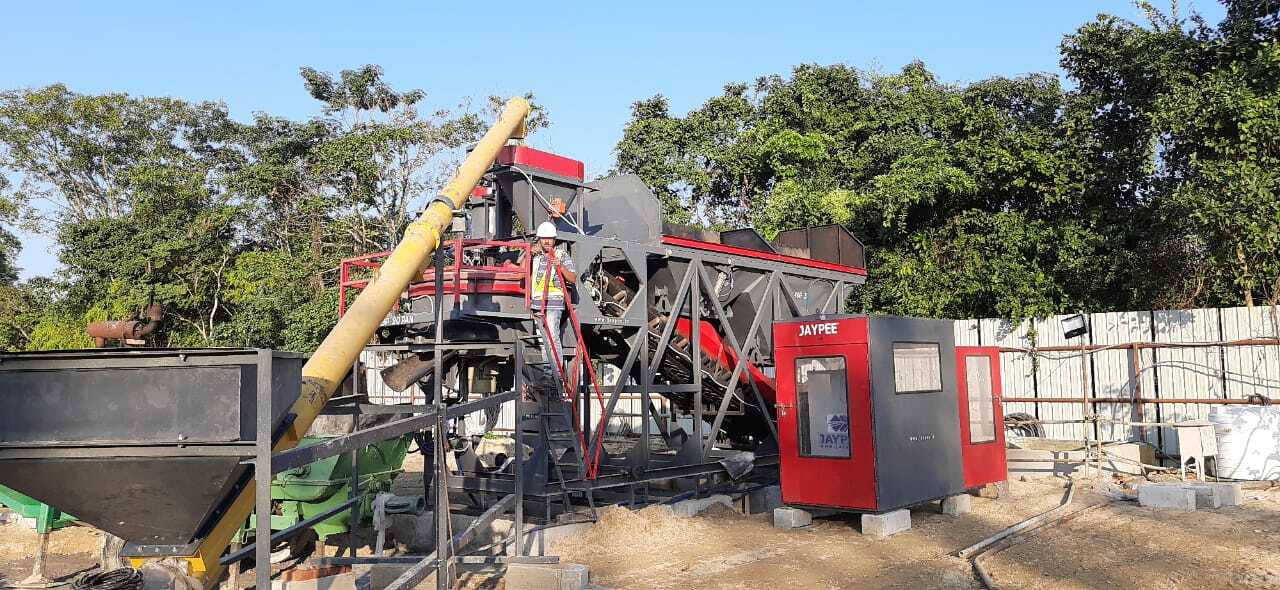

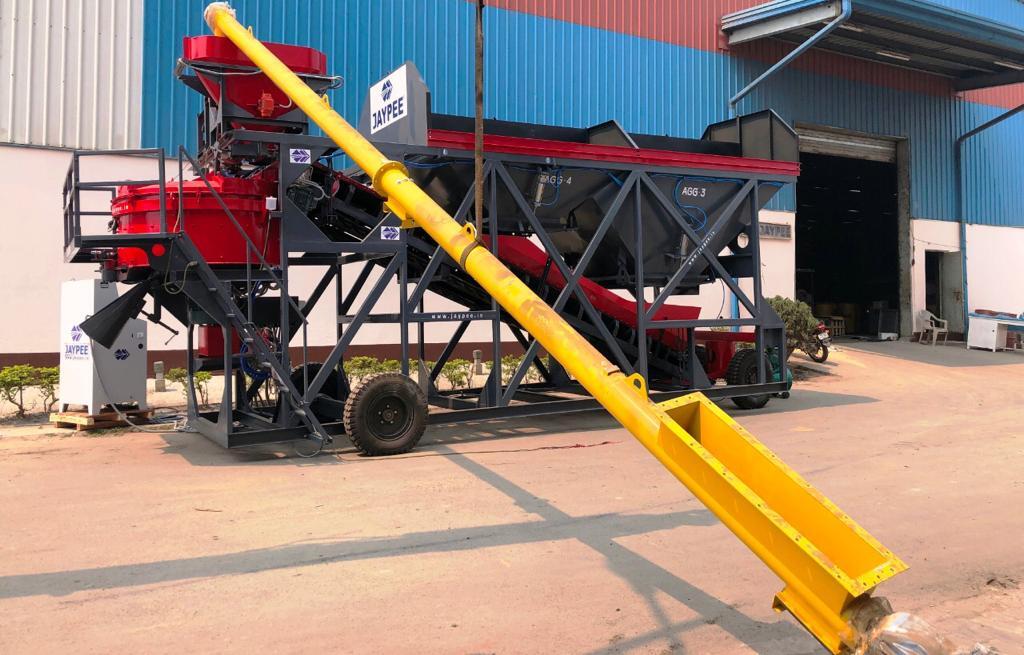

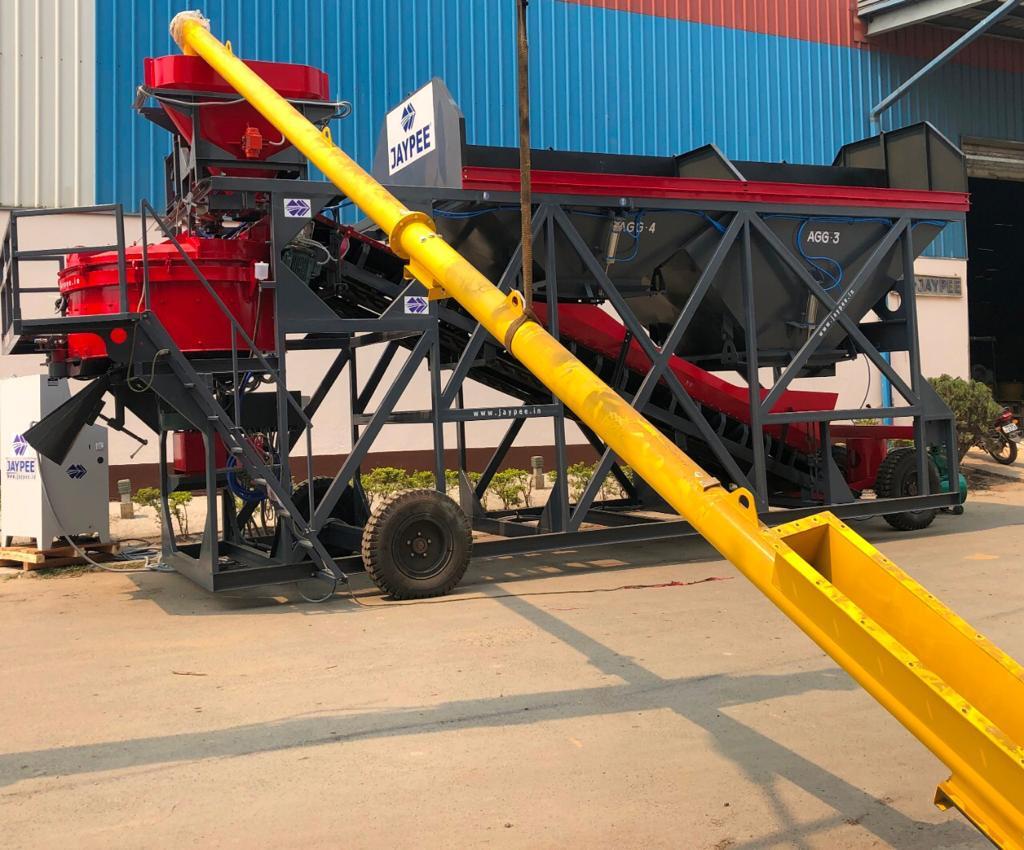

Jaypee Mobile Concrete Batching Plant

2000000.00 INR

Get a Price/Quote

Product Details:

Product Type Concrete Batching Plant
General Use Construction
Material Other
Weight (kg) 70600 Kilograms (kg)
Computerized Yes
Automatic Yes
Control System PLC Control
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Price And Quantity

Price 2000000.00 INR
Minimum Order Quantity 1 Piece

Product Specifications

Automatic Yes
Material Other
Conveyor Capacity 1000 Kg/day
Warranty 1
Control System PLC Control
General Use Construction
Voltage 20 Horsepower (HP)
Color Customized
Computerized Yes
Storage Capacity 12 Cubic Meter (m3)
Dimension(L*W*H) 700*400*500 Centimeter (cm)
Hopper Quantity 4 Unit
Hopper Capacity 500 Kilogram(Kg)
Power Source Electric
Power Consumption 40 Kilowatt (kW)
Product Type Concrete Batching Plant
Weight (kg) 70600 Kilograms (kg)
Mixing Drum Speed 32 RPM

Trade Information

Payment Terms Cash on Delivery (COD), Cash Against Delivery (CAD), Cash Advance (CA), Cash in Advance (CID)
Supply Ability 10 Piece Per Day
Delivery Time Days
Sample Policy Contact us for information regarding our sample policy
Main Domestic Market All India
Certifications CE AND TUV

Product Description

The Reversible Drum Automatic Batching Plant has a mixer output of 16 to 18 cuM. It has a batch mixing time of 120 sec per batch aided by a 15 HP geared motor. The control system either fully automatic or manual type. It has got a robust chassis made of steel frame. A 7.5 HP motor feeds aggregate from storage bins to the mixer via a 700 mm wide conveyor belt. A pneumatic control system facilitates the opening and closing of the gates. Cement from recharge hopper of capacity 250 kg is delivered by a screw conveyor of 220 mm diametre and 7 meter in length monitored by a I type load cell. Water dozing is from a 120 Ltr tank capacity powered by 1HP submersible pump monitored by a I type load cell. It has got a PLC based B and R control panel with pen drive for batch print. The total power consumption is 32.5 Kw with cement
