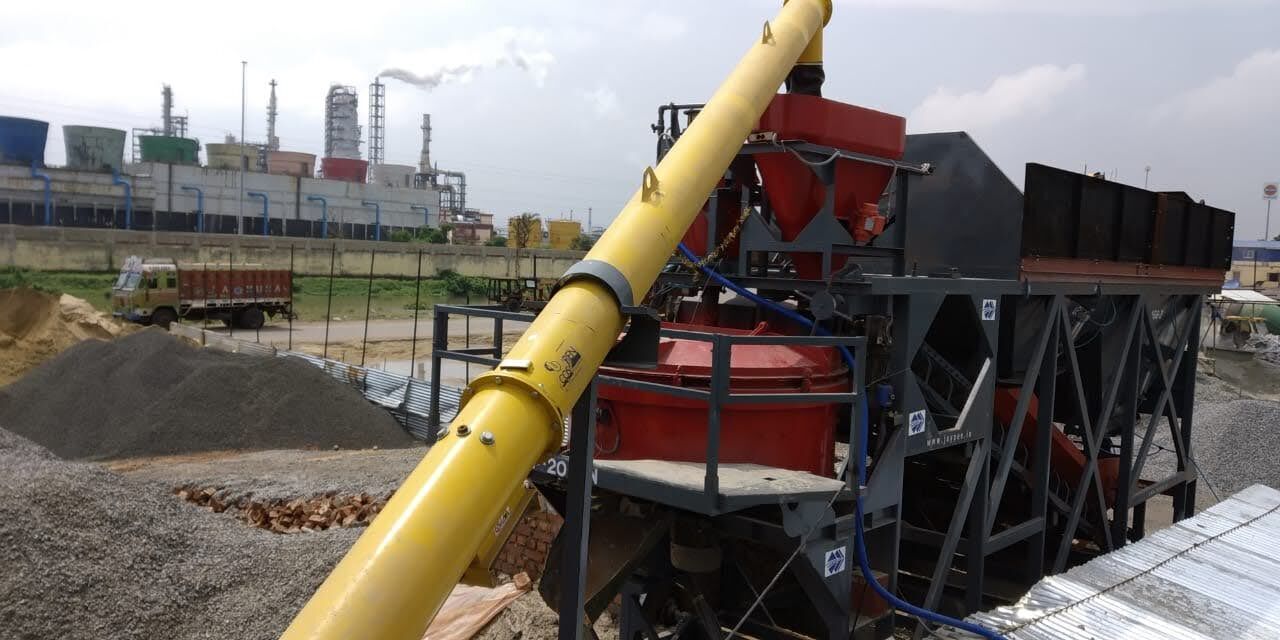

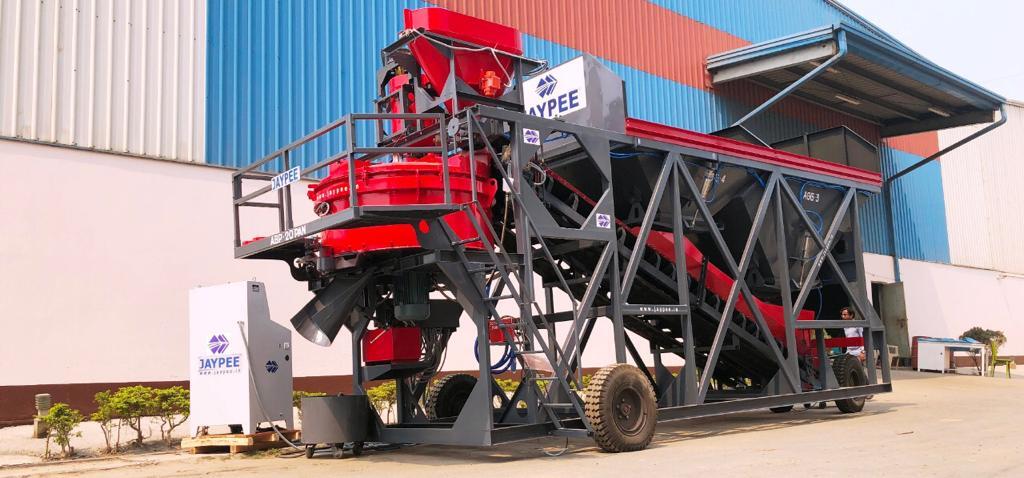

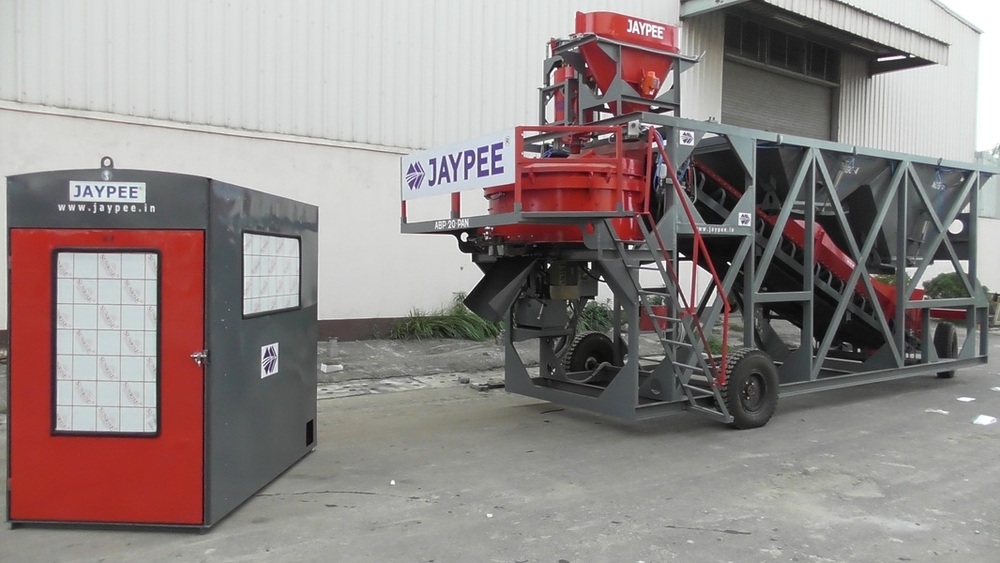

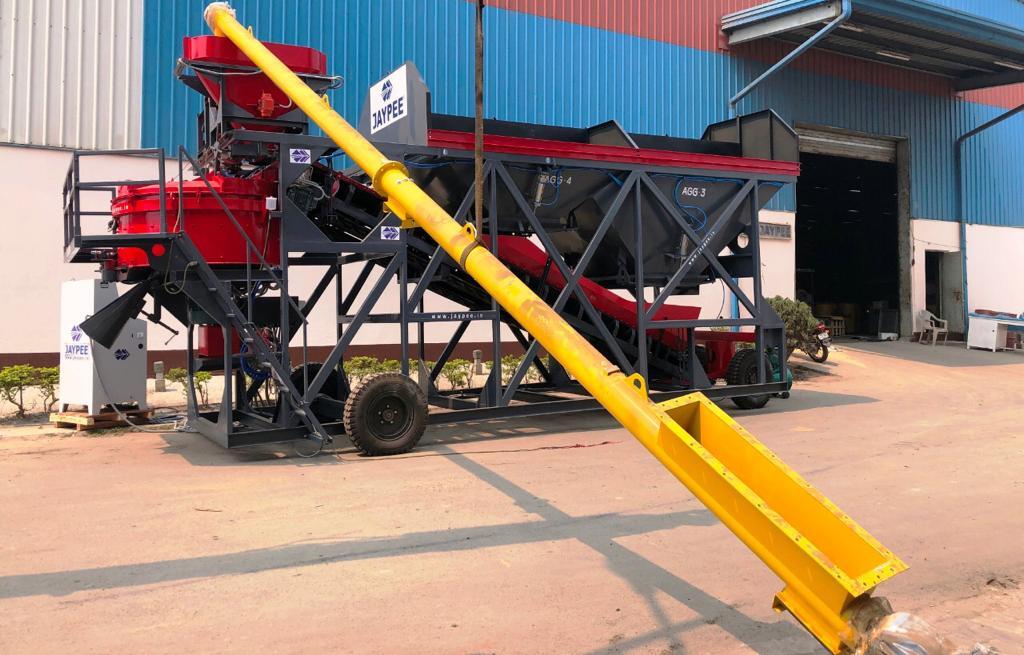

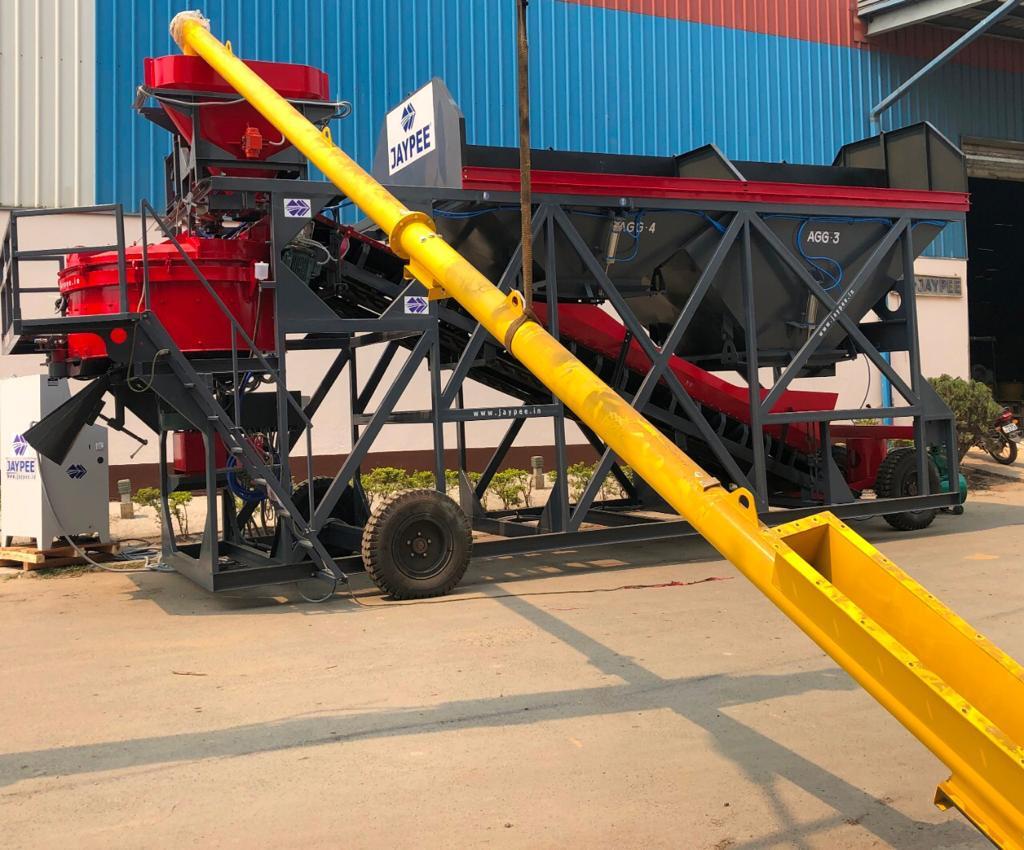

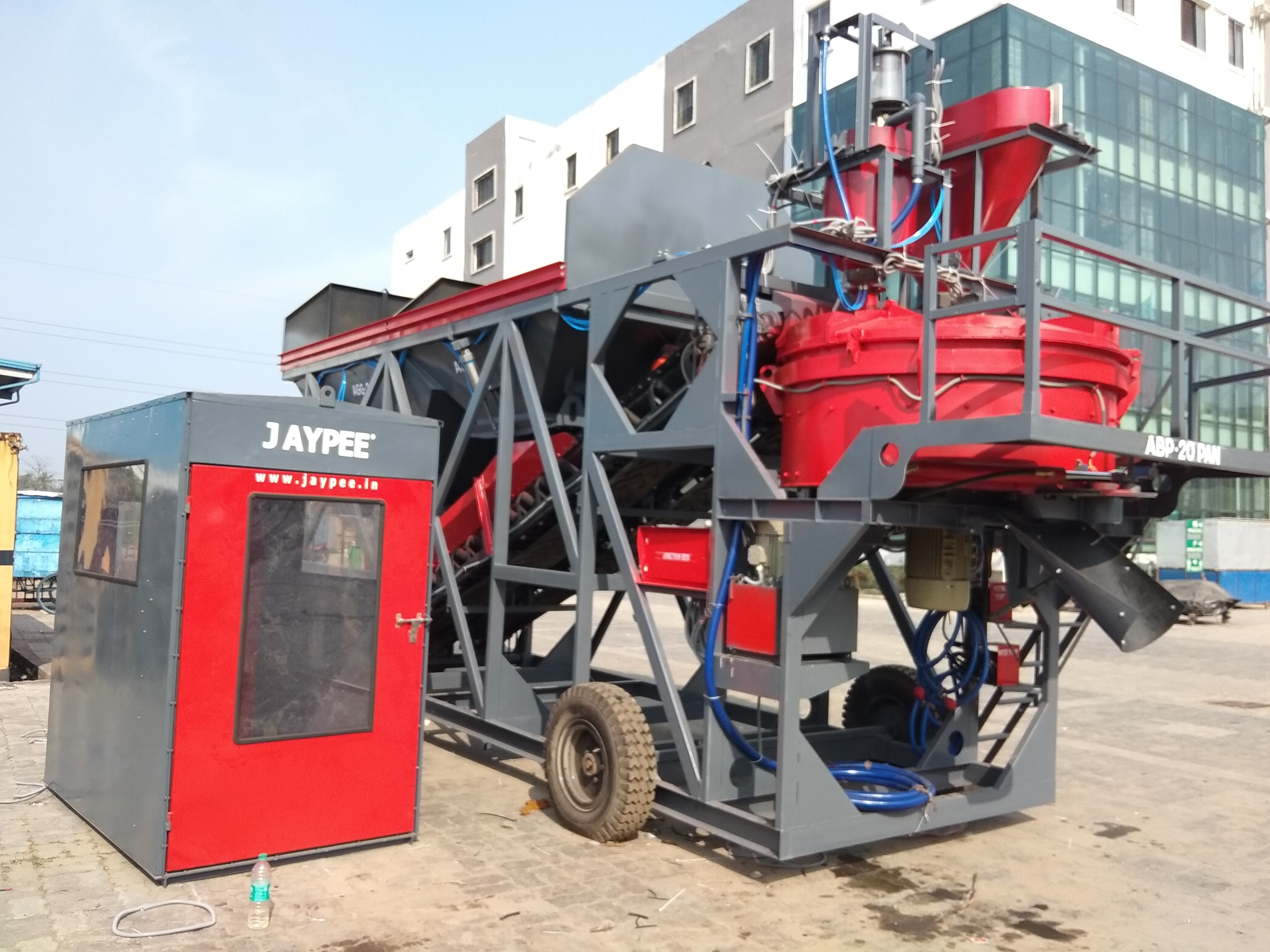

JAYPEE AUTOMATIC CONCRETE BATCHING PLANT ABP-20 (PAN MIXER)

JAYPEE AUTOMATIC CONCRETE BATCHING PLANT ABP-20 (PAN MIXER)

2000000.00 INR/Set

Get a Price/Quote

Product Details:

Product Type Batching Plant
General Use Construction
Material Stainless Steel
Type Concrete Mixing Plant Modular Concrete Mixing Machine Mobile Concrete Batching Plant
Computerized Yes
Automatic Yes
Control System PLC Control
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

JAYPEE AUTOMATIC CONCRETE BATCHING PLANT ABP-20 (PAN MIXER) Price And Quantity

Minimum Order Quantity 1 Set
Price 2000000.00 INR/Set

JAYPEE AUTOMATIC CONCRETE BATCHING PLANT ABP-20 (PAN MIXER) Product Specifications

Power Source Electric
Hopper Capacity Howrah Cubic Meter (m3)
Automatic Yes
Color Customized
Mixing Drum Speed 32 RPM
Warranty 1
Control System PLC Control
Material Stainless Steel
Storage Capacity Howrah Cubic Meter (m3)
General Use Construction
Product Type Batching Plant
Computerized Yes
Feature Good Quality High Efficiency Low Energy Consumption High Speed Automatic Feeding
Type Concrete Mixing Plant Modular Concrete Mixing Machine Mobile Concrete Batching Plant
Power Consumption 40 Kilowatt (kW)

JAYPEE AUTOMATIC CONCRETE BATCHING PLANT ABP-20 (PAN MIXER) Trade Information

Payment Terms Cash Advance (CA) Cash in Advance (CID)
Supply Ability 10 Set Per Day
Delivery Time 7 Days
Sample Policy Contact us for information regarding our sample policy
Main Domestic Market South India
Certifications CE and TUV

Product Description

Salient Features:

High Mobility
User Friendly
Robust Design
Large Capacity
High Performance
Heat Proof Control Cabin
Hydraulic Discharge System
Excellent Output
Low Maintenance Cost
Innovative Modern Technology
Automatic Plant that is Controlled by Computerized Techniques

Specifications:

Frame and Chassis All Rigid Steel Structure
Weighing Conveyor: To feed aggregate from storage bins to the mixer
Weighing System: Digital load cell based weighing system
Aggregate Storage Bin and Capacity: Total 8 m3
Water Dozing: Automated Weighing Based
Admixture Dozing: Automated Weighing Based
Cement Feeding System / Fly Ash: Screw conveyor feeding and auto controlled load cell based digital weighing
Power Consumption: 34 HP / 25 kW

Automatic Batching Plant 20 (Specifications)

Features	Automatic batching Plant-20 (Pan)

Mixer Type	pan
Mixer Output	18 to 20 CuM per hr
Batch Capacity	0.30 CuM
Batch Time	50 Sec per Batch
Power Transmission	20 HP geared motor
Control System	Fully Automatic per manual
Dry capacity	850 Ltr
RPM	32
Frame & Chassis	All rigid structure
Weighing Conveyor	Aggregates are fed from storage bins to the mixer by two 7.5 HP motor and a conveyor belt width of 400 MM.
Gate Opening	Pneumatically controlled by a 3 HP compressor motor
Screw Conveyor	It is 220 mm diameter and 7 M in length, powered by 7.5 HP motor
Cement Recharge Hopper	The capacity of cement recharge hopper is 225 Kg fitted with I type load cell.
Aggregate Storage system	Aggregates are stored in 4 bins with a capacity of 3 CuM.
Water Dozing and Chemical dozing	Water Dozing and Chemical Dozing tank capacities are 120Ltr and 5 Ltr fitted with submersible pump.
Total power Consumption	Total power consumption of 40 Kw

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'BATCHING PLANT' category

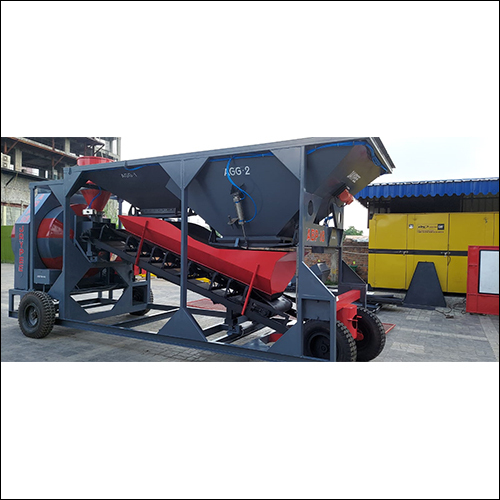

Jaypee Automatic Batching Plant-18 (Reversible-Drum) Price : 2000000 INR/Set Minimum Order Quantity : 1 Power Consumption : 32.5 Kilowatt (kW) Product Type : Automatic Batching Plant Computerized : Yes General Use : Construction Material : Stainless Steel Mixing Drum Speed : 20 RPM Weight (kg) : 70600 Kilograms (kg) Warranty : 1 Power Source : Electric Hopper Capacity : 500 Kilogram(Kg) Automatic : Yes Hopper Quantity : 2 Unit Control System : PLC Control Storage Capacity : 12 Cubic Meter (m3) Dimension (L*W*H) : 700*400*500 Centimeter (cm) Color : Customized Conveyor Capacity : 1000 Kg/hr Voltage : 15 Horsepower (HP)
