Jaypee Electric Automatic Batching Plant (Reversible-Pan)

Jaypee Electric Automatic Batching Plant (Reversible-Pan)

1999999.00 INR/Piece

Get a Price/Quote

Product Details:

Product Type Automatic Batching Plant
General Use Construction
Material Stainless Steel
Weight (kg) 70600 Kilograms (kg)
Computerized Yes
Automatic Yes
Control System PLC Control
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Jaypee Electric Automatic Batching Plant (Reversible-Pan) Price And Quantity

Minimum Order Quantity 1 Set
Price 1999999.00 INR/Piece

Jaypee Electric Automatic Batching Plant (Reversible-Pan) Product Specifications

Hopper Capacity 12 Cubic Meter (m3)
Conveyor Capacity 1000 Kg/day
General Use Construction
Storage Capacity 850 Liter (L)
Mixing Drum Speed 32 RPM
Control System PLC Control
Warranty 1
Voltage 20 Horsepower (HP)
Product Type Automatic Batching Plant
Computerized Yes
Hopper Quantity 4 Sets
Weight (kg) 70600 Kilograms (kg)
Material Stainless Steel
Power Consumption 40 Kilowatt (kW)
Power Source Electric
Color Customized
Automatic Yes
Dimension (L*W*H) 700*400*500 Centimeter (cm)

Jaypee Electric Automatic Batching Plant (Reversible-Pan) Trade Information

Supply Ability 10 Set Per Day
Delivery Time Days
Sample Policy Contact us for information regarding our sample policy
Main Domestic Market All India
Certifications CE AND TUV

Product Description

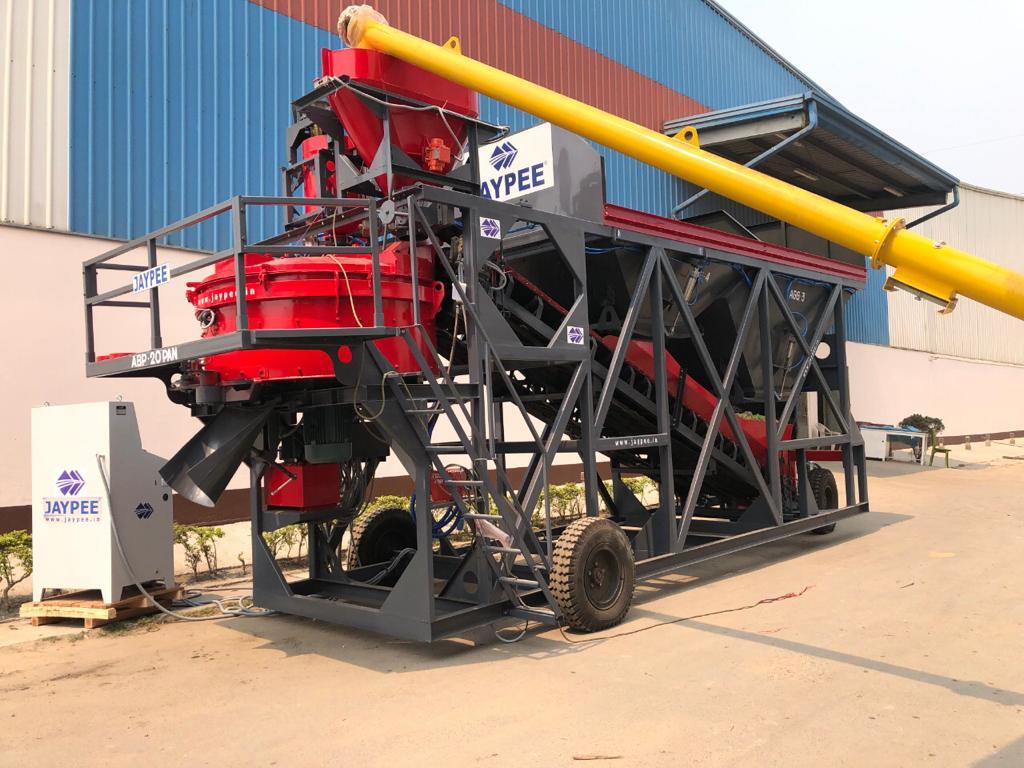

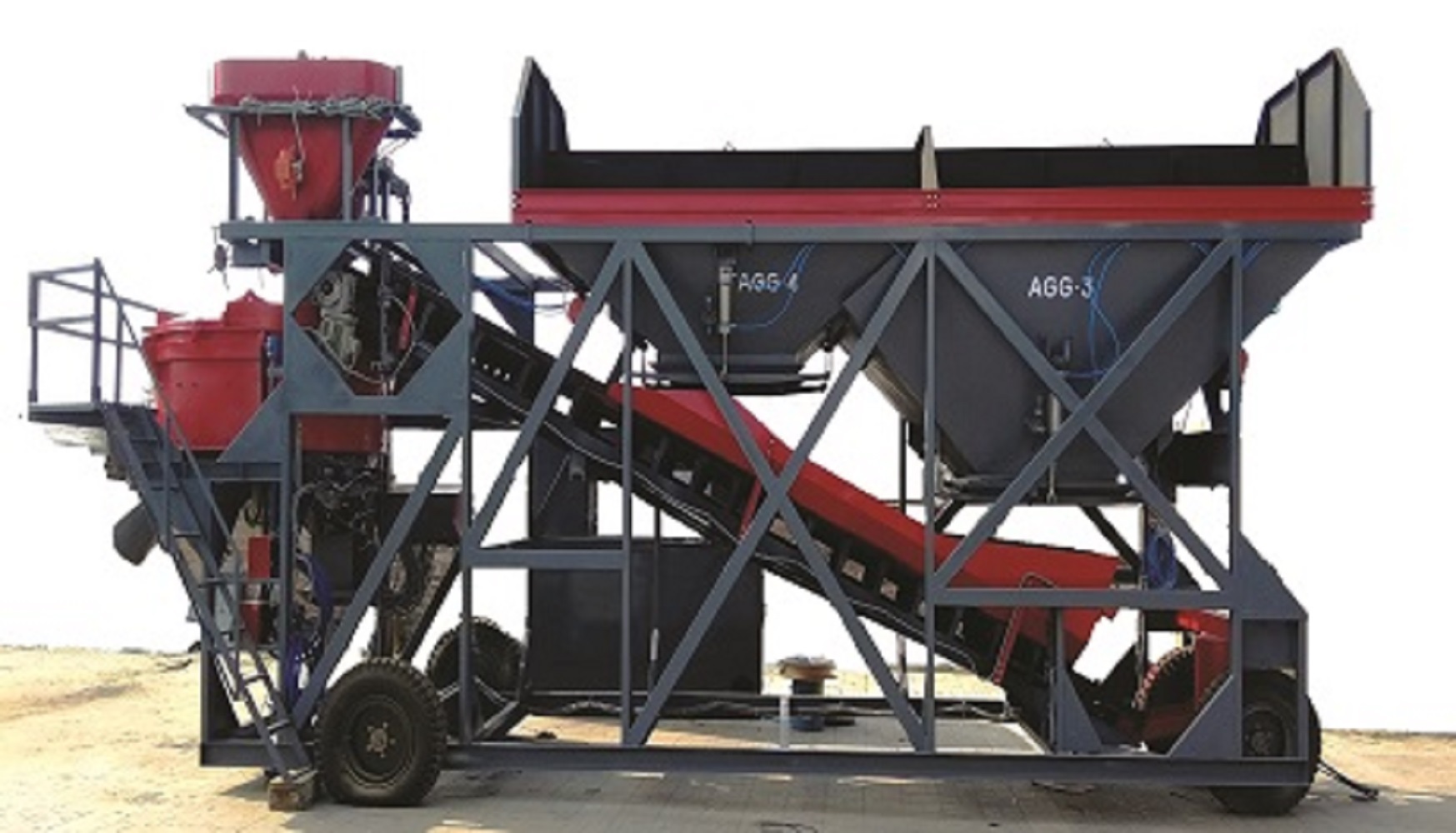

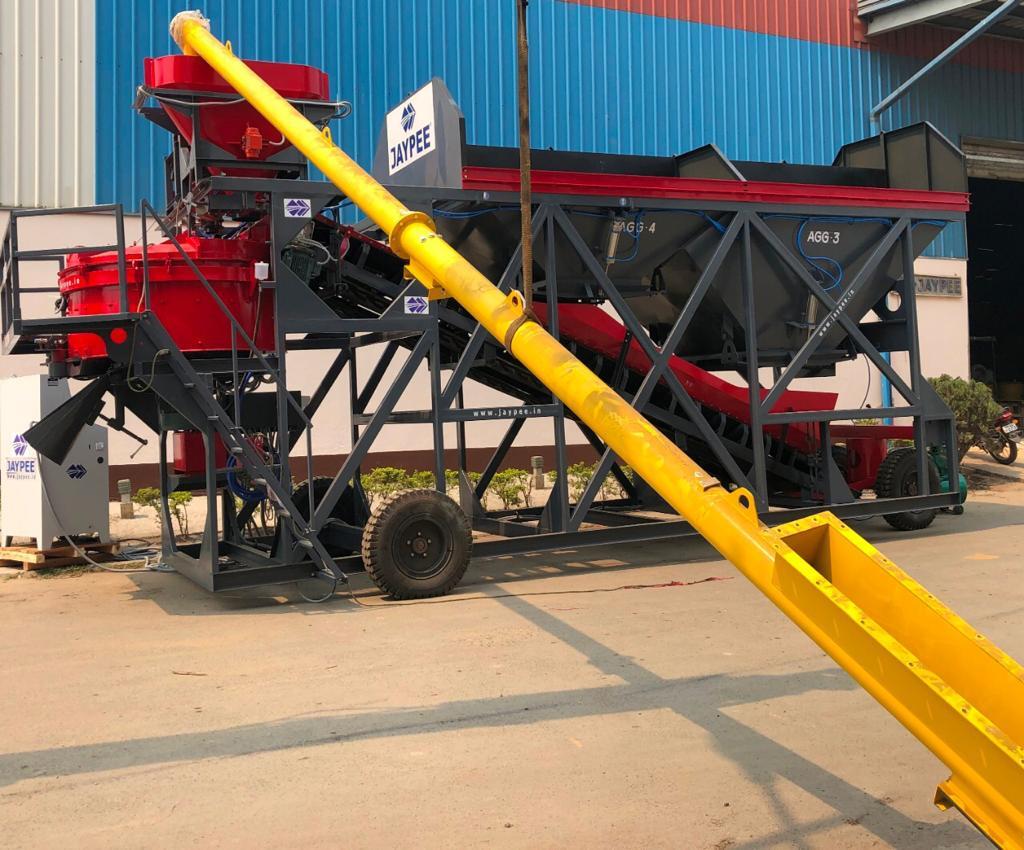

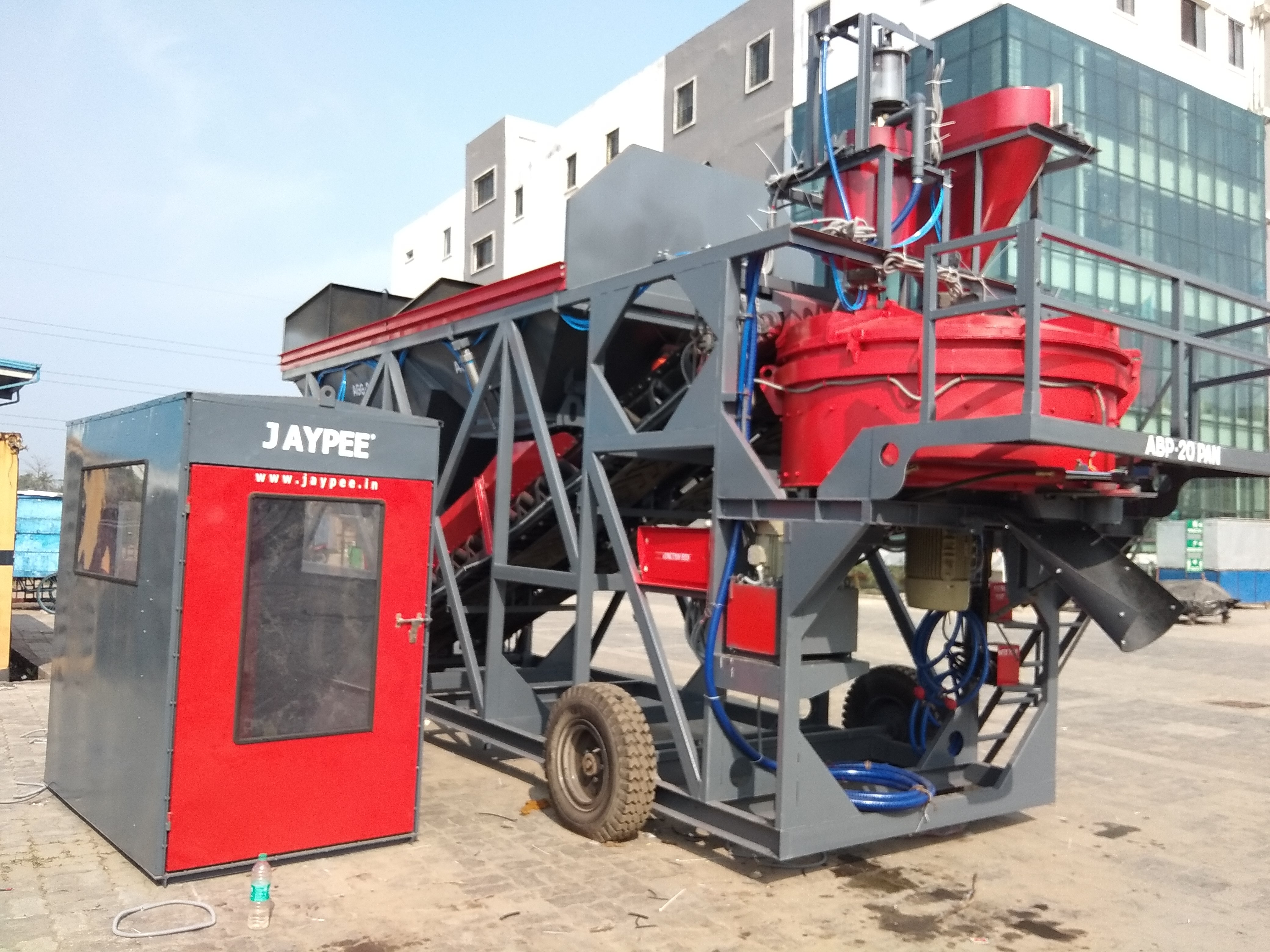

The Pan Mixer Type Of Automatic Batching Plant has a total output capacity of 18 to 20 CuM per Hr. It Has a total Batch Capacity of 0.30 CuM. It takes 50 seconds to prepare a batch powered by 20 HP geared motor. It has got a dry capacity of 850 Ltr and RPM of 32. To feed aggregate from storage bins it is powered by two 7.5 HP motors running a belt of size 400MM attached with I type load cell. Gate opening is pneumatically controlled. The compressor is powered by 3HP motor. Cement is fed from a recharge hopper of 225 Kg capacity via 220 mm diameter, 7 mtr long screw conveyor run by 7.5 HP motor. There are 4 bins of 3CuM capacity to store aggregate. It has got 120 Ltr tank capacity with a 1HP submersible pump. Total power consumption is 40 kw. Control is PLC based, back up and reset control panel with pen drive for batch print.
