RADIUS BENDING MACHINE

200000.00 INR/Set

Get a Price/Quote

Product Details:

Machine Type Radius Bar Bending Machine
Raw Material Steel
Place of Origin India
Weight 750 Kilograms (kg)
Color Red
Power 3 Horsepower (HP)
Voltage 440 Volt (v)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

RADIUS BENDING MACHINE Price And Quantity

Price Range 200000.00 - 300000.00 INR/Set
Minimum Order Quantity 1 Set
Price 200000.00 INR/Set

RADIUS BENDING MACHINE Product Specifications

Product Type Radius Bending Machine
Bending Strength minimum bending diameter is 1 metre for 35 mm TMT-Bar
Weight 750 Kilograms (kg)
Raw Material Steel
Place of Origin India
Machine Type Radius Bar Bending Machine
Voltage 440 Volt (v)
Usage Industrial
Power 3 Horsepower (HP)
Color Red
Automation yes

RADIUS BENDING MACHINE Trade Information

Supply Ability 100 Set Per Week
Delivery Time 7 Days
Sample Policy Contact us for information regarding our sample policy
Main Domestic Market All India
Certifications CE and TUV

Product Description

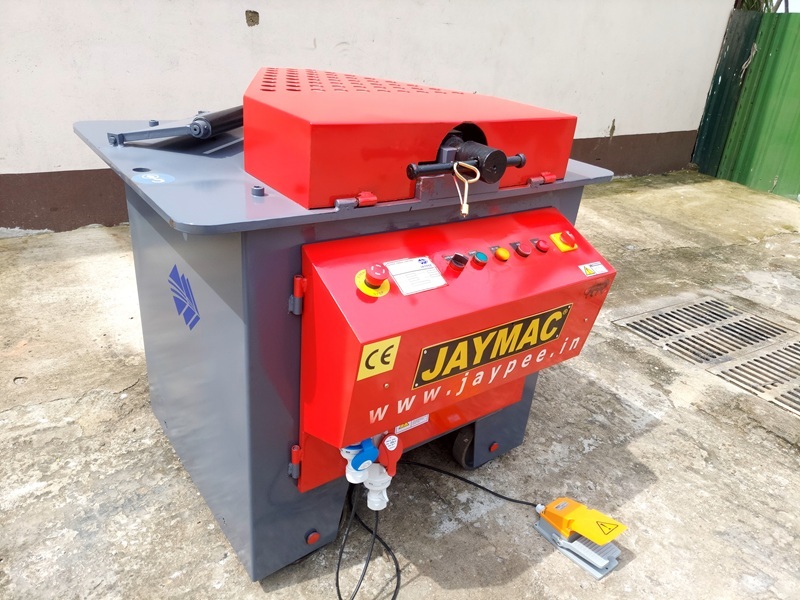

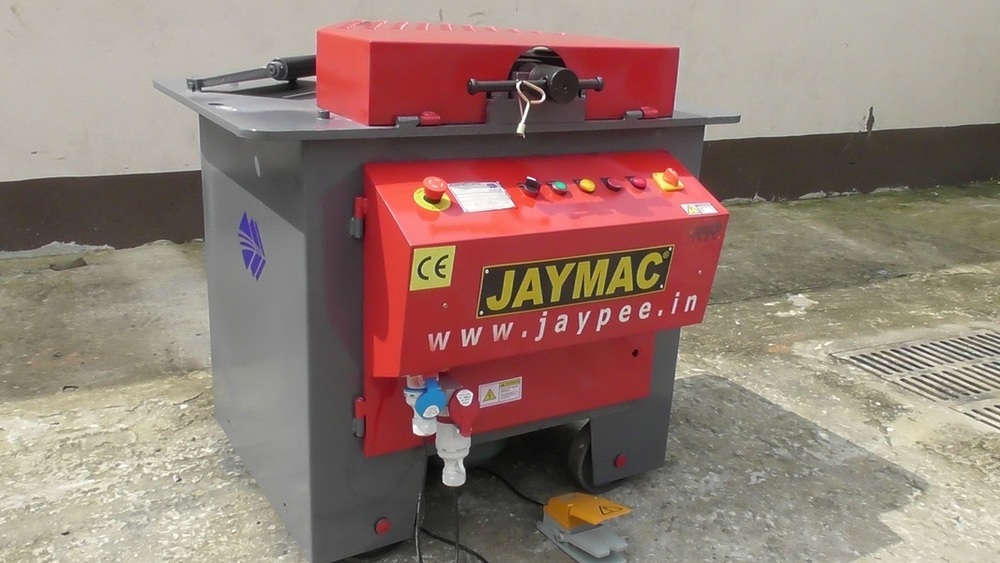

JAYMAC Radius BendingïMachine is designed to radius most rebar without the need to pre-bend the end of the bar

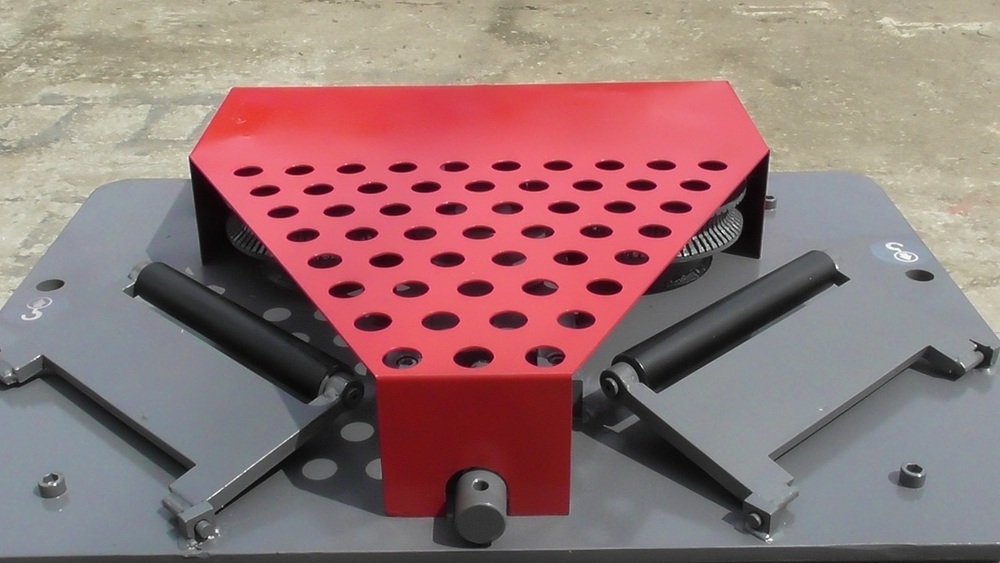

It Keeps the operators hands away from the forming rolls allows safe operation

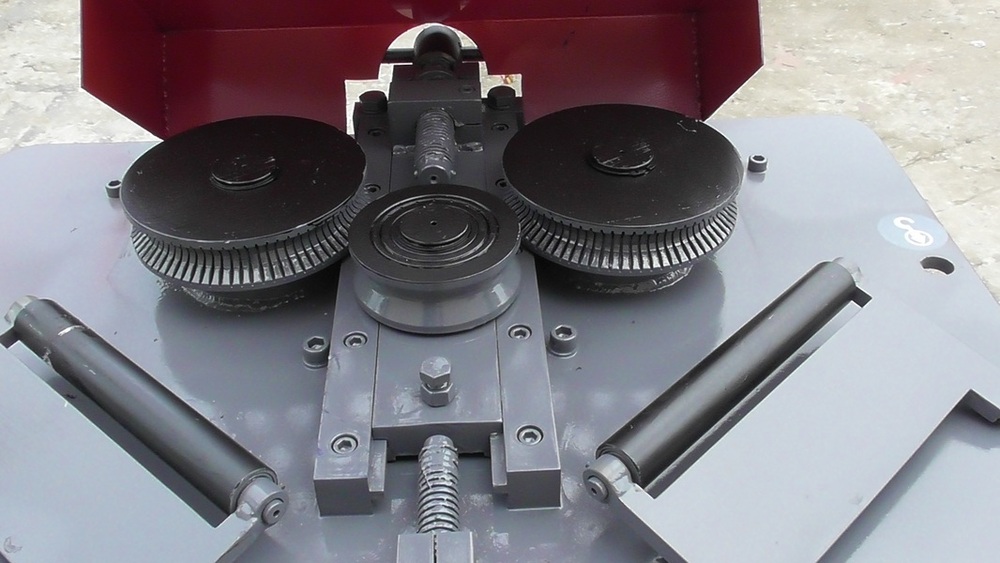

The drive roller does not rotate while the guard is open
A counter on the meeting roll allows you to return to a previously selected position

MODEL

RB-36

RB-42

CAPACITY

28 mm Bar

32 mm Bar

Grade 60 or 65 Kg per mm sq

MOTOR

Feed Motor

Feed Motor

3 HP Motor
(Optional 2-Speed Motor)

3 HP Motor

440 VAC, 3-PHASE 50 Hz STANDARD

FEED RATE

44 m/min OR 22 m/min

22 m /min

DIMENSIONS

1001 by 1050 by 930 mm

1001 by 1050 by 930 mm

WEIGHT (APPROX.)

700 Kgs

750 Kgs
