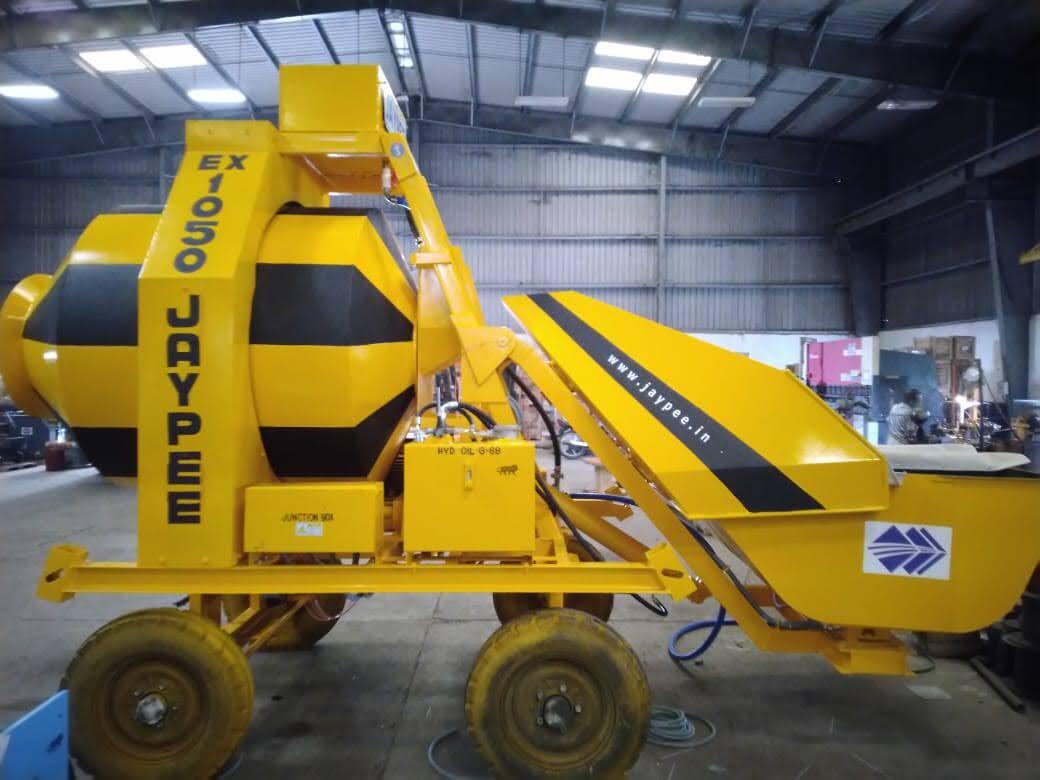

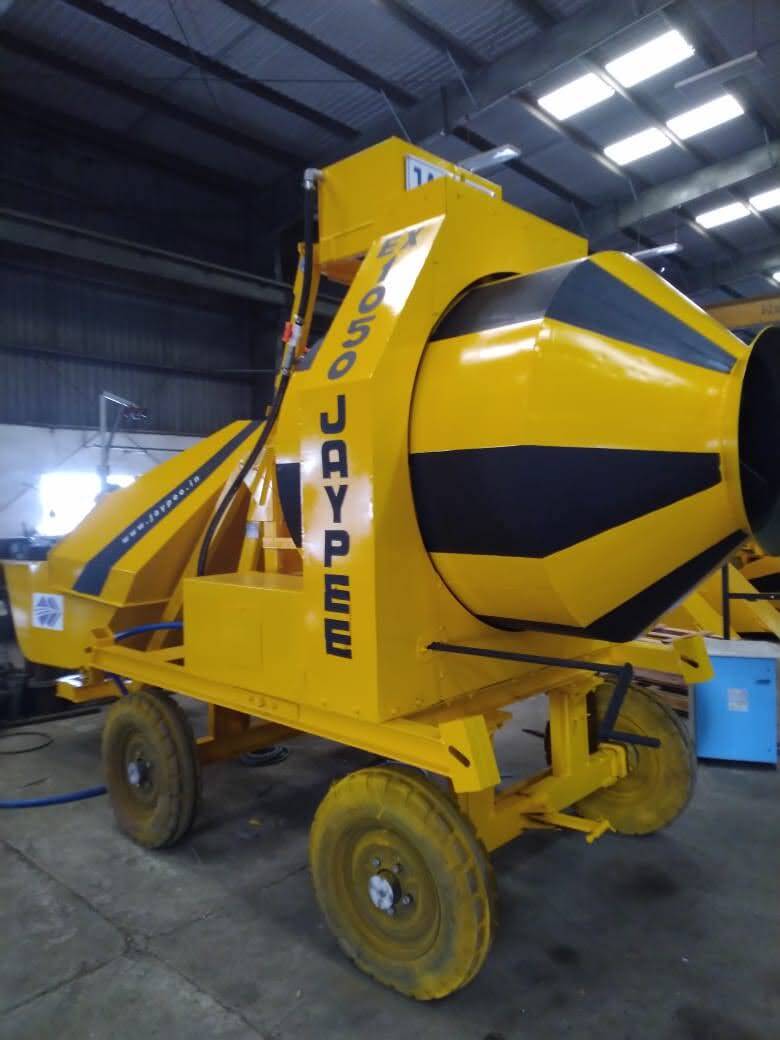

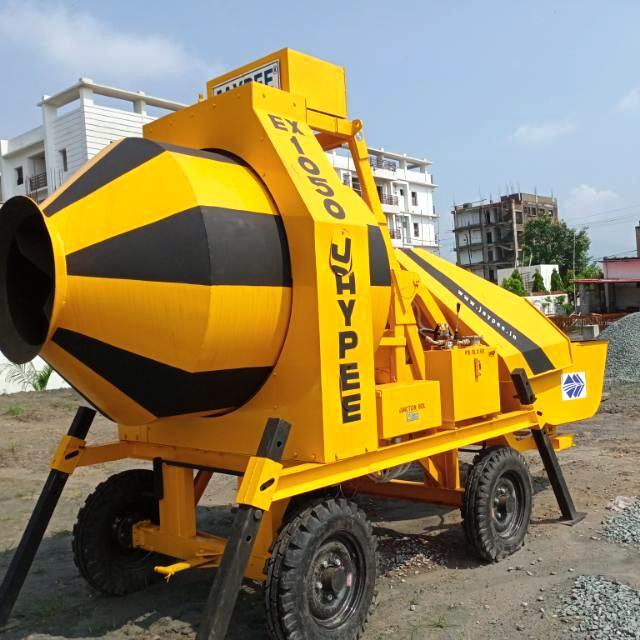

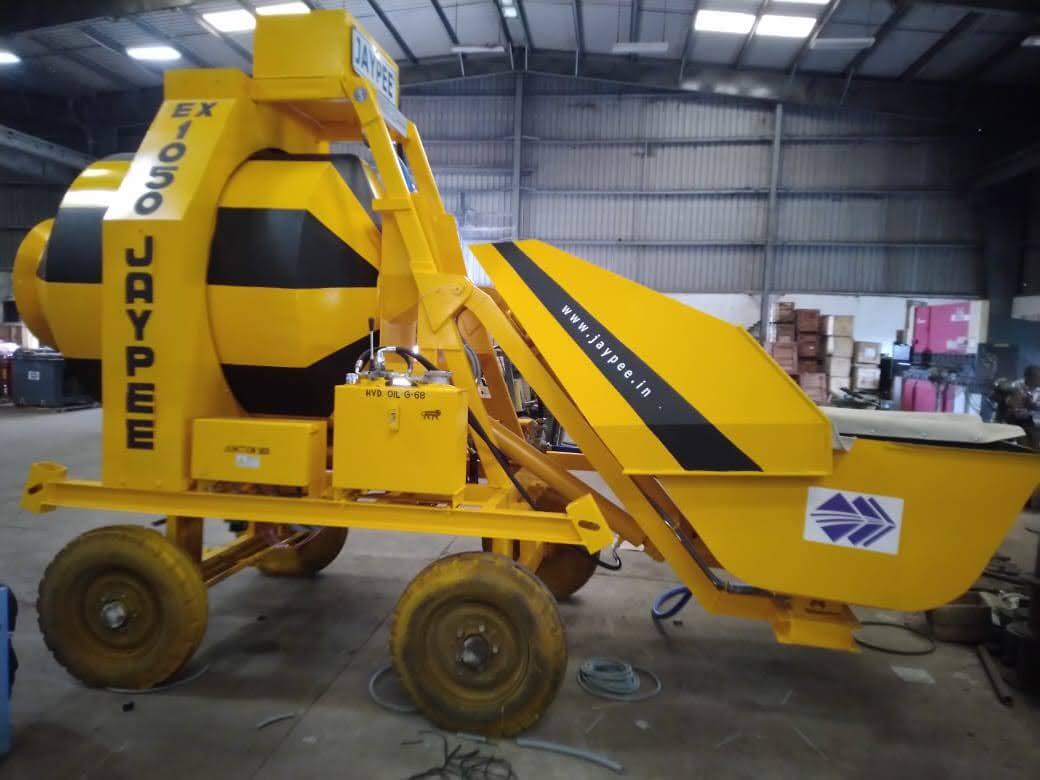

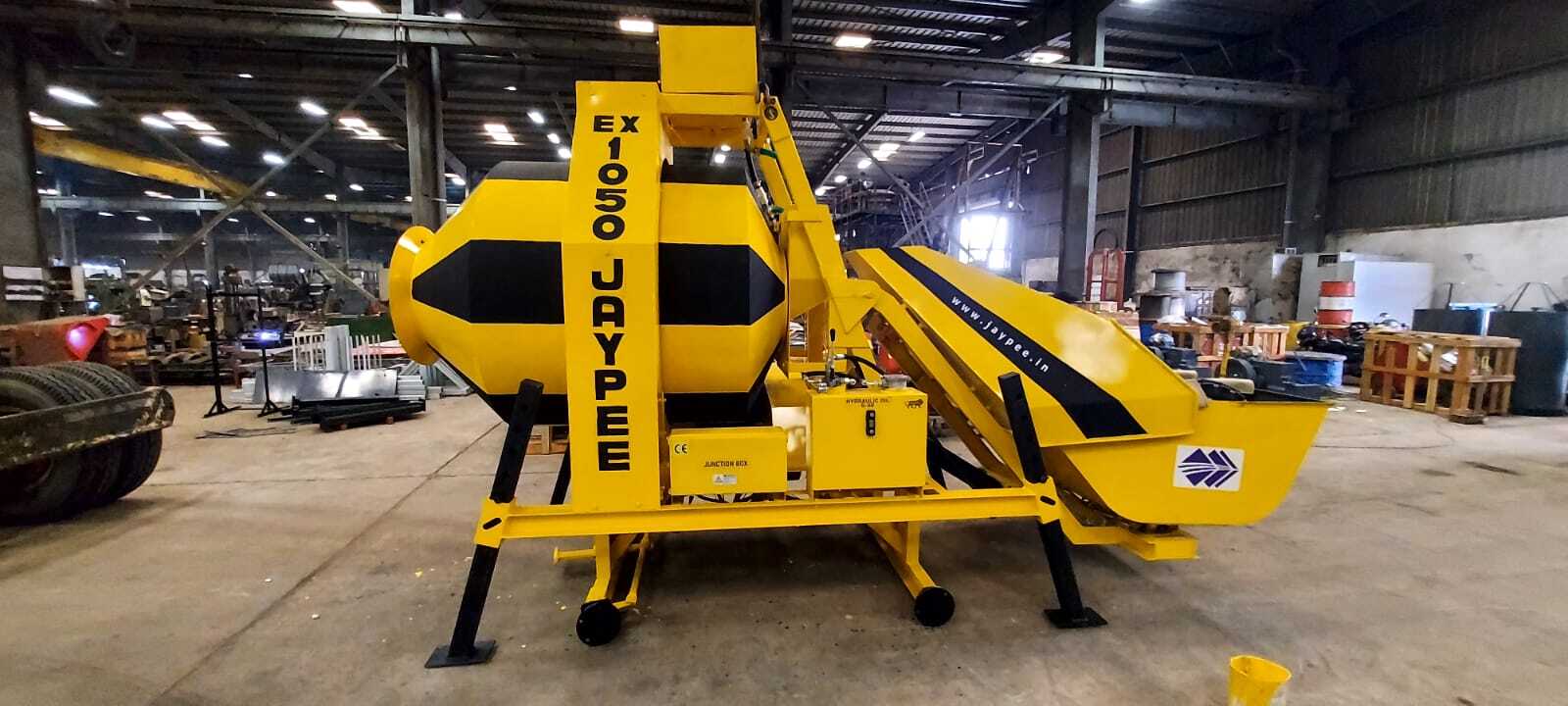

Jaypee Reversible Drum Concrete Mixer EX 1050

Product Description

• Benefits & Features

  • Uniform mixing achieved with accurate setting of mixing blades and drum rotation adhering to IS Specifications.
  • Shutter vibrator on the discharge shoot avoids clogging of materials during discharge from the hopper.
  • Four wheel set chassis for sturdy maneuverability.
  • Imported Hydraulics for continuous performance.


  Optional Features
  • Single/Double/Three Bin
  • Printing Facility
  • Admixture Dozing System
  • Centralised Lubrication System
  • Skip operation via solenoid valve/ Electrically operated hopper
  • Double Water Pump dispensing system gives you complete accuracy for water discharge
  Technical Data


  Model	EX 550-E	EX 850-E	EX 1050-E	EX 1050-D	EX 1400-E
  Hopper Capacity (Dry)	550 Kg	850 Kg	1100 Kg	1100 Kg	1400 Kg
  Batch Capacity (Wet)	0.3 m3	0.4 m3	0.5 m3	0.5 m3	0.66 m3
  Machine Output/hour *	9 m3/hr	12 m3/hr	15 m3/hr	15 m3/hr	18 m3/hr
  Power	10 HP(7.5 Kw) Elec. Motor	10 HP(7.5 Kw) Elec. Motor	15 HP (11 Kw) Elec. Motor	16 HP Diesel Engine	15 HP (11 Kw) Geared Motor
  Weighing Type	1 Bin	3 Bin	3 Bin	3 Bin	3 Bin
  Water Dozing	Digital	Digital	Digital	Digital	Digital
  Water Tank Capacity	120 Liters	150 Liters	200 Liters	200 Liters	250 Liters
  Weighing System	Load Cell Based Weighing System with Digital Display
  Hydraulic Pump	17 lpm @170 bar	19 lpm @170 bar	19 lpm @ 200 bar	27 lpm @ 200 bar	27 lpm @ 200 bar
  Gear Ring & Roller	Accurately Machined With Gear Cutting Operation Supported by Heavy Duty Guide Rollers
  Wheels	Pneumatic Wheels( 4Nos.) 6"X 16"	Pneumatic Wheels( 4Nos.) 6"X 16"	Pneumatic Wheels( 4Nos.) 6"X 16"	Pneumatic Wheels( 4Nos.) 6"X 16"	Pneumatic Wheels( 4Nos.) 7"X 19"
  Jack Leveling	Pin Type (4 nos.)	Pin Type (4 nos.)	Pin Type (4 Nos.)	Pin Type (4 Nos.)	Pin Type (4 Nos.)
  Dimensions (L X W X H)	3240 X 1450 X 2650 mm	4000 X 1650 X 2700 mm	4690 X 1890 X 2900 mm	4600X 1890 X 2740 mm	4816 X 2000 X 3100 mm
  Weight (Approx)	1500 Kg	1830 Kg	2280 Kg	2650 Kg	2950 Kg
  Special Attachment Fitted with Each Machine	A) Special Design Hopper Vibrator     B) Centralized Lubricating System
  Optional Features	A) Printing System with USB     B) Admixer Dozing     C) With Conveyor System
