Jaypee Concrete Mixer (Reverse Drum)

590000.00 INR/Piece

Get a Price/Quote

Product Details:

Product Type Reverse Drum Concrete Mixer
General Use Industrial, Construction
Material Steel
Capacity 12 to 18 m3/hr
Weight (kg) 2950 Kilograms (kg)
Computerized Yes
Automatic Yes
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Jaypee Concrete Mixer (Reverse Drum) Price And Quantity

Minimum Order Quantity 1 Set
Price 590000.00 INR/Piece

Jaypee Concrete Mixer (Reverse Drum) Product Specifications

Capacity 12 to 18 m3/hr
Weight (kg) 2950 Kilograms (kg)
Color Gray
Material Steel
Method Hydraulic Pressure
General Use Industrial, Construction
Feature weight detection by load cell and printer facility available with 3-Bin variant
Cooling System Hydraulic Oil Cooling
Product Type Reverse Drum Concrete Mixer
Warranty 1
Computerized Yes
Control System Manual
Automatic Yes
Dimension (L*W*H) 481.6 * 200 * 310 Centimeter (cm)
Voltage 15 Horsepower (HP)

Jaypee Concrete Mixer (Reverse Drum) Trade Information

Payment Terms Cash on Delivery (COD) Cash Advance (CA) Cash Against Delivery (CAD) Cash in Advance (CID)
Supply Ability 100 Set Per Month
Delivery Time 10 Days
Sample Policy Contact us for information regarding our sample policy
Main Domestic Market All India
Certifications CE and TUV

Product Description

Benefits & Features

Uniform mixing achieved with accurate setting of mixing blades and drum rotation adhering to IS Specifications.
Shutter vibrator on the discharge shoot avoids clogging of materials during discharge from the hopper.
Four wheel set chassis for sturdy maneuverability.
Imported Hydraulics for continuous performance.

Optional Features

Single or Double or Three Bin
Printing Facility
Admixture Dozing System
Centralised Lubrication System
Skip operation via solenoid valve/ Electrically operated hopper
Double Water Pump dispensing system gives you complete accuracy for water discharge

Technical Data

Model	EX 550 E	EX 850 E	EX 1050 E	EX 1050 D	EX 1400 E
Hopper Capacity (Dry)	550 Kg	850 Kg	1100 Kg	1100 Kg	1400 Kg
Batch Capacity (Wet)	0.3 CuM	0.4 CuM	0.5 CuM	0.5 CuM	0.66 CuM
Machine Output/hour *	9 CuM per hr	12 Cum per hr	15 CuM per hr	15 CuM per hr	18 CuM per hr
Power	10 HP(7.5 Kw) Elec. Motor	10 HP(7.5 Kw) Elec. Motor	15 HP (11 Kw) Elec. Motor	16 HP Diesel Engine	15 HP (11 Kw) Geared Motor
Weighing Type	1 Bin	3 Bin	3 Bin	3 Bin	3 Bin
Water Dozing	Digital	Digital	Digital	Digital	Digital
Water Tank Capacity	120 Liters	150 Liters	200 Liters	200 Liters	250 Liters
Weighing System	Load Cell Based Weighing System with Digital Display
Hydraulic Pump	17 lpm at 170 bar	19 lpm at 170 bar	19 lpm at 200 bar	27 lpm at 200 bar	27 lpm at 200 bar
Gear Ring & Roller	Accurately Machined With Gear Cutting Operation Supported by Heavy Duty Guide Rollers
Wheels	Pneumatic Wheels( 4Nos.) 6 inch by 16inch	Pneumatic Wheels( 4Nos.) 6 inch by 16 inch	Pneumatic Wheels( 4Nos.) 6 inch by 16 inch	Pneumatic Wheels( 4Nos.) 6 inch by 16inch	Pneumatic Wheels( 4Nos.) 7 inch by 19 inch
Jack Leveling	Pin Type (4 nos.)	Pin Type (4 nos.)	Pin Type (4 Nos.)	Pin Type (4 Nos.)	Pin Type (4 Nos.)
Dimensions (L X W X H)	3240 by 1450 by 2650 mm	4000 by 1650 by 2700 mm	4690 by 1890 by 2900 mm	4600 by 1890 by 2740 mm	4816 by 2000 by 3100 mm
Weight (Approx)	1500 Kg	1830 Kg	2280 Kg	2650 Kg	2950 Kg
Special Attachment Fitted with Each Machine	A) Special Design Hopper Vibrator B) Centralized Lubricating System
Optional Features	A) Printing System with USB B) Admixer Dozing C) With Conveyor System

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'REVERSE DRUM MIXER' category

JAYPEE REVERSE DRUM BATCH MIX PLANT EX 1050 (E) Price : 600000.00 INR/Piece Minimum Order Quantity : 1 Feature : cncrete batch mixing General Use : Construction Weight (kg) : 2650 Kg Kilograms (kg) Dimension (L*W*H) : 469 x 189 x 290 Centimeter (cm) Automatic : Yes Control System : PLC Control Computerized : No Warranty : 1 Cooling System : Hydraulic Oil Cooling Product Type : Cement Concrete Mixer Material : Steel Capacity : 1100 Kg Method : Hydraulic Pressure Color : Customized

Send Inquiry

Jaypee Reversible Drum Concrete Mixer EX 1050 Price : 600000 INR/Piece Minimum Order Quantity : 1 Feature : weight detection by load cell and printer facility available General Use : Industrial, Construction Weight (kg) : 2280 Kilograms (kg) Dimension (L*W*H) : 4690*1890*2900mm Millimeter (mm) Automatic : No Control System : Manual Computerized : No Warranty : 1 Cooling System : Other Product Type : Reversible Drum Concrete Mixer EX 1050 Material : Steel Capacity : 15 CUM per hour m3/hr Method : Other Color : Yellow Voltage : 15 Horsepower (HP)

Send Inquiry

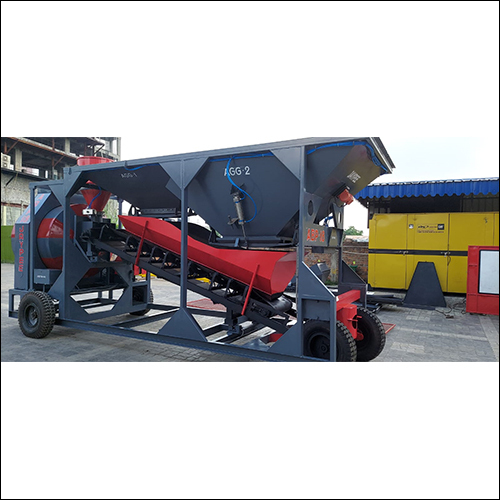

Jaypee Automatic Batching Plant (Reversible Drum) Price : 1999999.00 INR/Piece Minimum Order Quantity : 1 Feature : weight detection by load cell and printer facility available General Use : Industrial, Construction Weight (kg) : 70600 Kilograms (kg) Dimension (L*W*H) : 800 * 300 * 420 Centimeter (cm) Automatic : Yes Control System : Manual Computerized : Yes Warranty : 1 Cooling System : Other Product Type : ABP(reversible drum) Material : Steel Capacity : 0.56 CuM at 120 Sec per batch m3/hr Method : Hydraulic Pressure Color : Gray Voltage : 15 Horsepower (HP)
