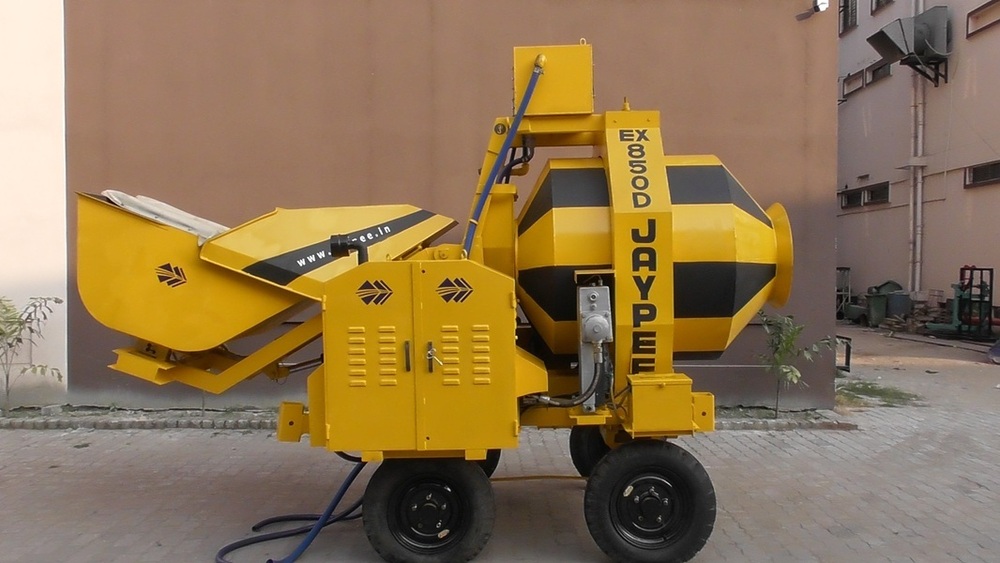

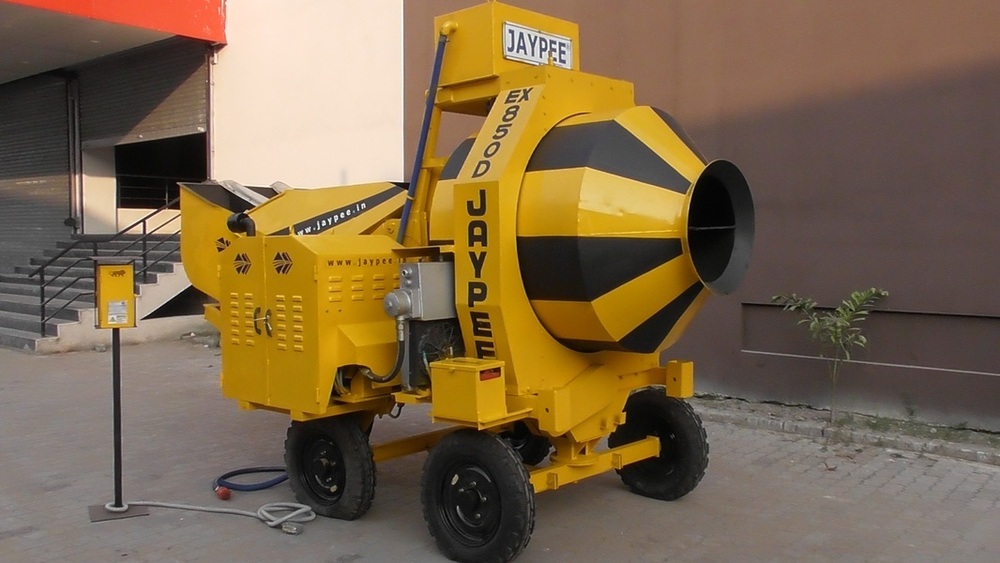

JAYPEE REVERSE DRUM CONCRETE MIXER EX 850 D

JAYPEE REVERSE DRUM CONCRETE MIXER EX 850 D

600000.00 INR/Set

Get a Price/Quote

Product Details:

Product Type Reversible drum concrete mixer EX 850
General Use Industrial, Construction
Material Steel
Capacity 0.3 CuM Batch Capacity(wet) m3/hr
Weight (kg) 1830 Kilograms (kg)
Computerized No
Automatic No
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

JAYPEE REVERSE DRUM CONCRETE MIXER EX 850 D Price And Quantity

Minimum Order Quantity 1 Set
Price 600000.00 INR/Set

JAYPEE REVERSE DRUM CONCRETE MIXER EX 850 D Product Specifications

Method Hydraulic Pressure
Capacity 0.3 CuM Batch Capacity(wet) m3/hr
Computerized No
Voltage 240 Volt (v)
Warranty 1
Cooling System Hydraulic Oil Cooling
Control System Manual
Weight (kg) 1830 Kilograms (kg)
Color Customized
Product Type Reversible drum concrete mixer EX 850
Feature weight detection by load cell and printer facility available
General Use Industrial, Construction
Material Steel
Automatic No
Dimension (L*W*H) 4000*1650*2700 Millimeter (mm)

JAYPEE REVERSE DRUM CONCRETE MIXER EX 850 D Trade Information

Payment Terms Cash Advance (CA) Cash in Advance (CID)
Supply Ability 100 Set Per Month
Delivery Time 7 Days
Sample Policy Contact us for information regarding our sample policy
Main Domestic Market All India
Certifications CE and TUV

Product Description

Benefits and Features

Uniform mixing achieved with accurate setting of mixing blades and drum rotation adhering to IS Specifications.
Shutter vibrator on the discharge shoot avoids clogging of materials during discharge from the hopper.
Four wheel set chassis for sturdy maneuverability.
Imported Hydraulics for continuous performance.

Optional Features

Single or Double or Three Bin
Printing Facility
Admixture Dozing System
Centralized Lubrication System
Skip operation via solenoid valve/ Electrically operated hopper
Double Water Pump dispensing system gives you complete accuracy for water discharge

Technical Data

Model	EX 550-E	EX 850-E	EX 1050-E	EX 1050-D	EX 1400-E
Hopper Capacity (Dry)	550 Kg	850 Kg	1100 Kg	1100 Kg	1400 Kg
Batch Capacity (Wet)	0.3 m³	0.4 m³	0.5 m³	0.5 m³	0.66 m³
Machine Output/hour *	9 m³/hr	12 m³/hr	15 m³/hr	15 m³/hr	18 m³/hr
Power	10 HP(7.5 Kw) Elec. Motor	10 HP(7.5 Kw) Elec. Motor	15 HP (11 Kw) Elec. Motor	16 HP Diesel Engine	15 HP (11 Kw) Geared Motor
Weighing Type	1 Bin	3 Bin	3 Bin	3 Bin	3 Bin
Water Dozing	Digital	Digital	Digital	Digital	Digital
Water Tank Capacity	120 Liters	150 Liters	200 Liters	200 Liters	250 Liters
Weighing System	Load Cell Based Weighing System with Digital Display
Hydraulic Pump	17 lpm @170 bar	19 lpm @170 bar	19 lpm @ 200 bar	27 lpm @ 200 bar	27 lpm @ 200 bar
Gear Ring & Roller	Accurately Machined With Gear Cutting Operation Supported by Heavy Duty Guide Rollers
Wheels	Pneumatic Wheels( 4Nos.) 6"X 16"	Pneumatic Wheels( 4Nos.) 6"X 16"	Pneumatic Wheels( 4Nos.) 6"X 16"	Pneumatic Wheels( 4Nos.) 6"X 16"	Pneumatic Wheels( 4Nos.) 7"X 19"
Jack Leveling	Pin Type (4 nos.)	Pin Type (4 nos.)	Pin Type (4 Nos.)	Pin Type (4 Nos.)	Pin Type (4 Nos.)
Dimensions (L X W X H)	3240 X 1450 X 2650 mm	4000 X 1650 X 2700 mm	4690 X 1890 X 2900 mm	4600X 1890 X 2740 mm	4816 X 2000 X 3100 mm
Weight (Approx)	1500 Kg	1830 Kg	2280 Kg	2650 Kg	2950 Kg
Special Attachment Fitted with Each Machine	A) Special Design Hopper Vibrator B) Centralized Lubricating System
Optional Features	A) Printing System with USB B) Admixer Dozing C) With Conveyor System
