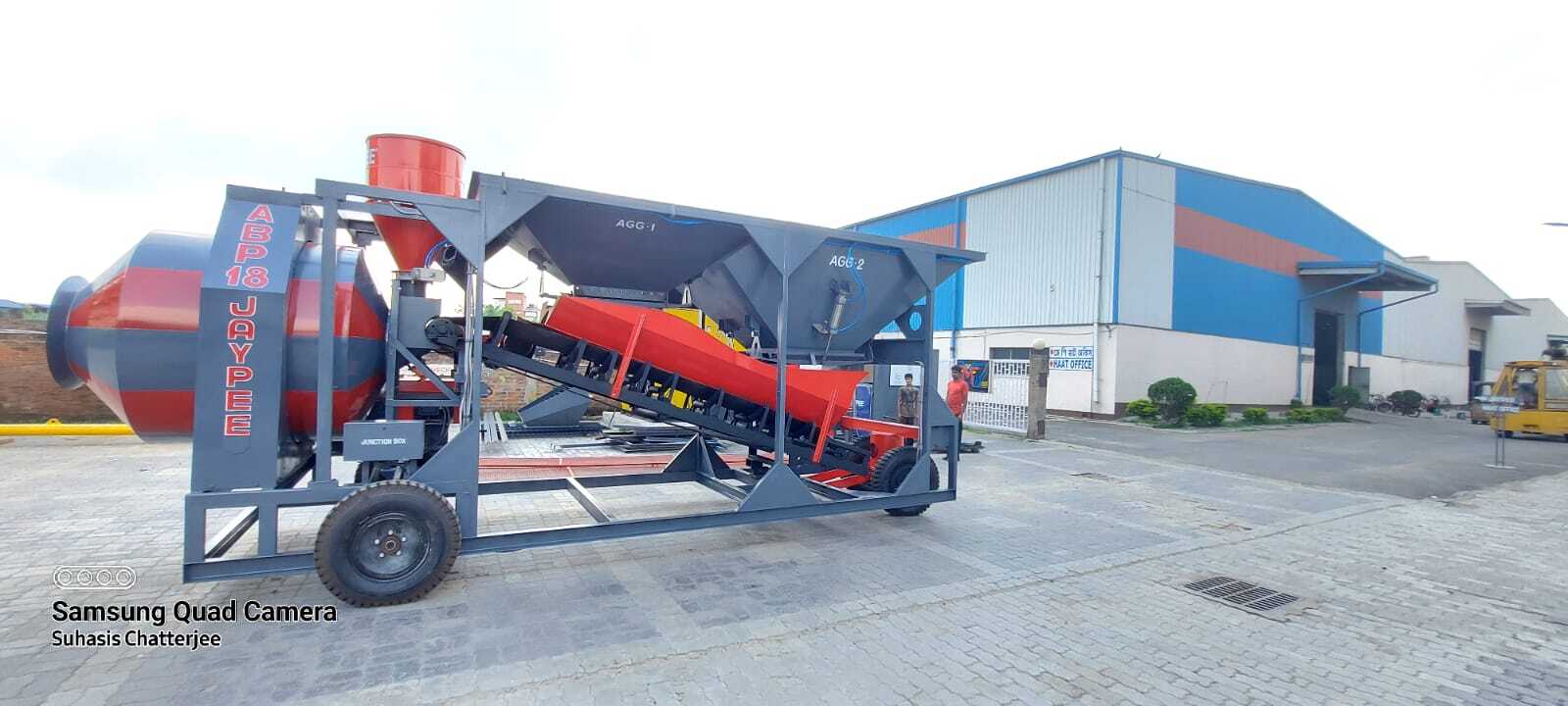

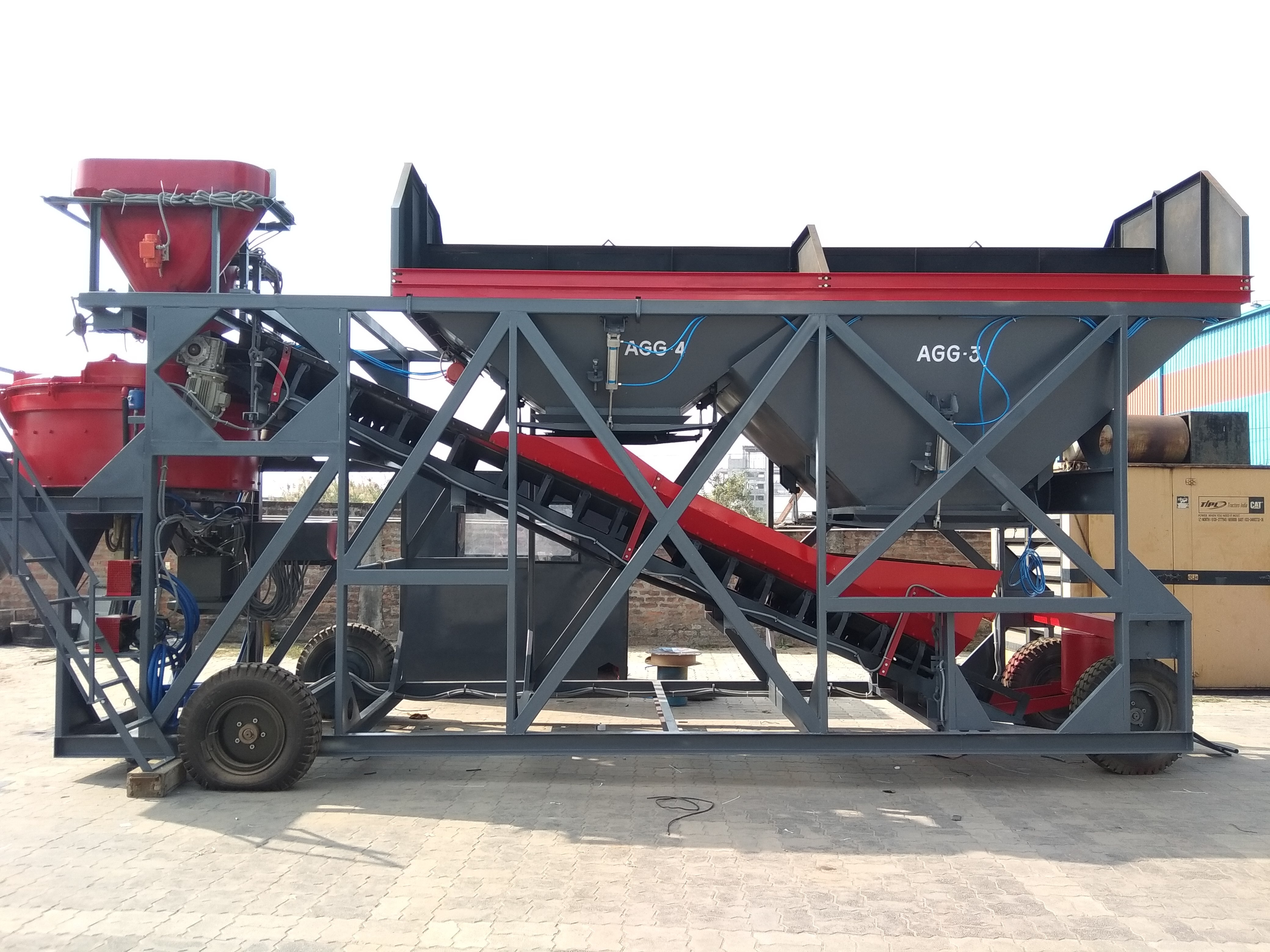

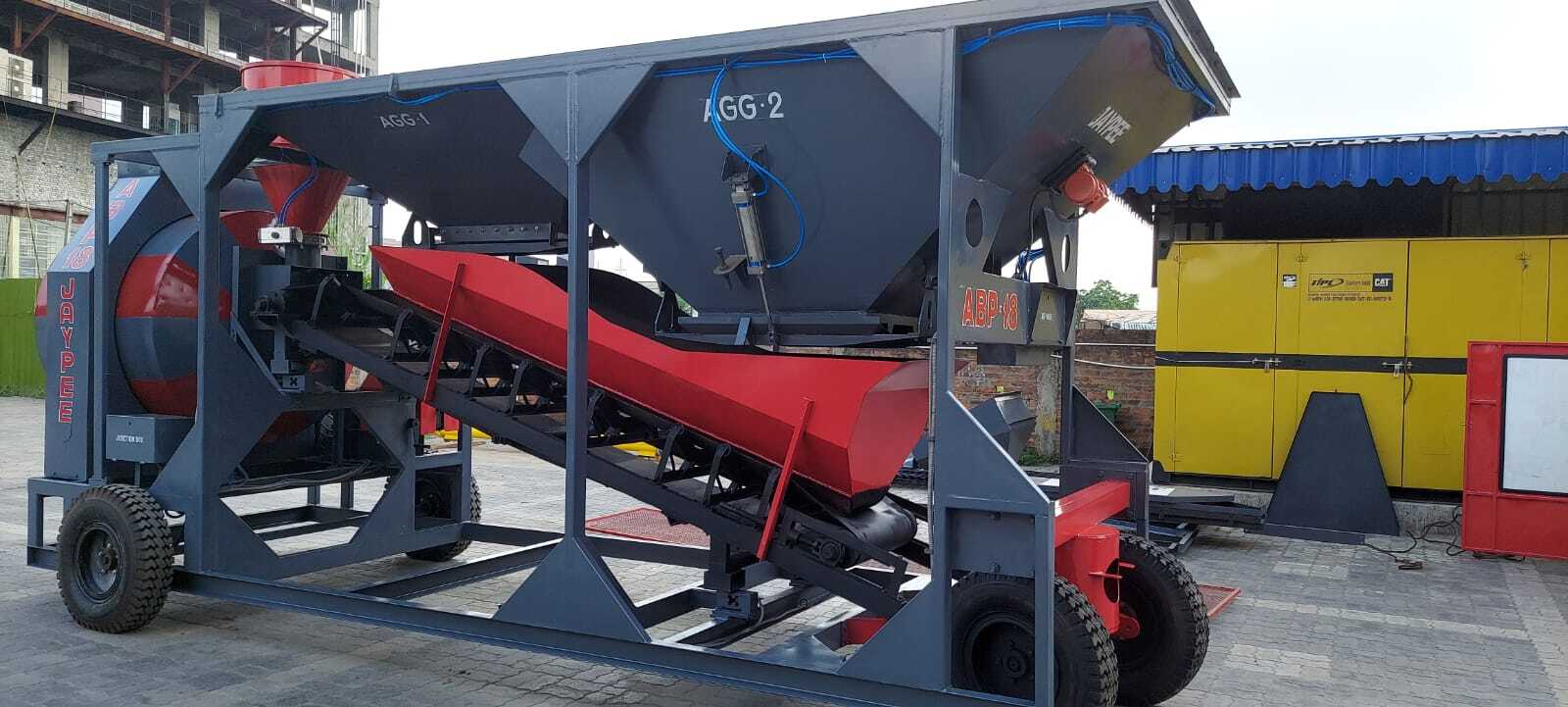

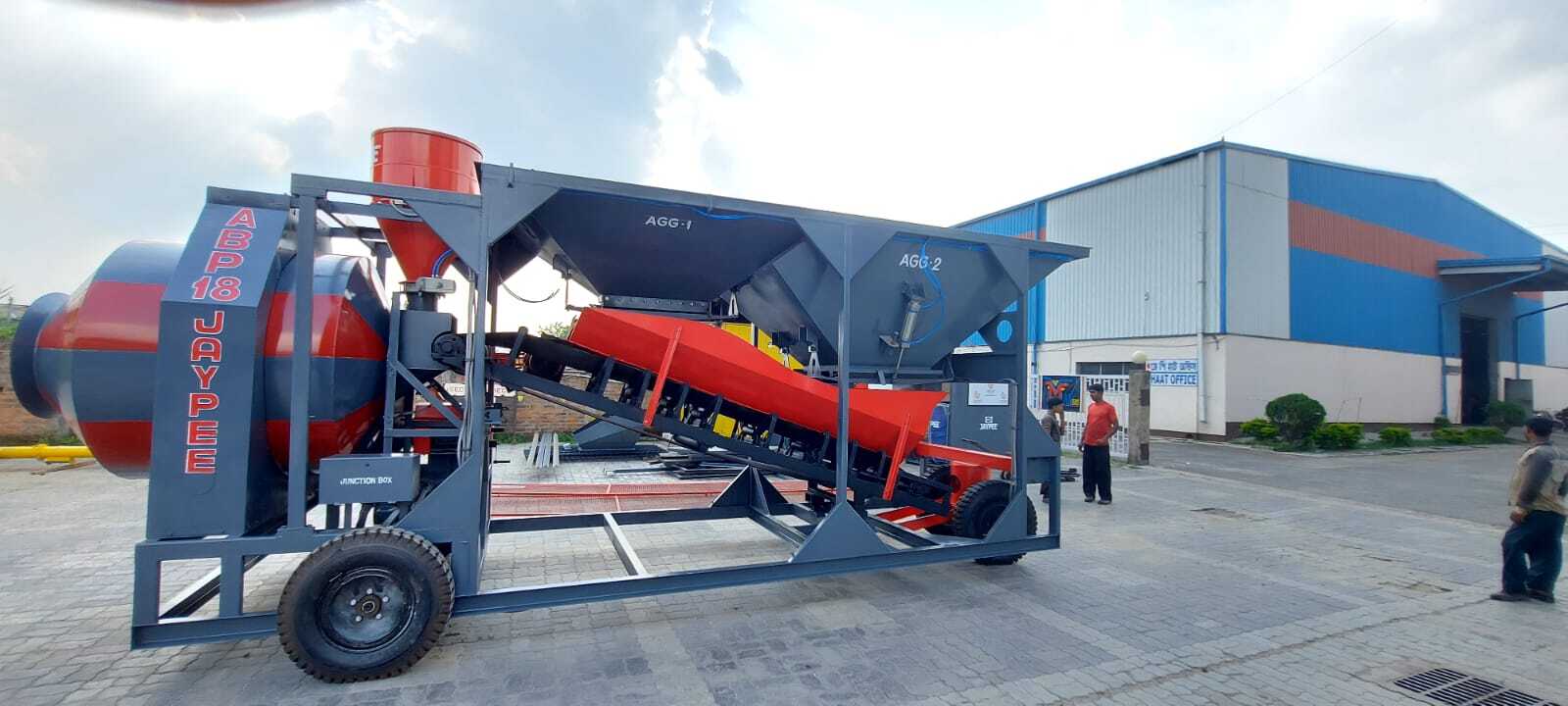

Stationary Concrete Batching Plant with Reversible Drum

Stationary Concrete Batching Plant with Reversible Drum

2000000 INR/Set

Get a Price/Quote

Product Details:

Product Type Stationary Concrete Batching Plant
General Use Construction
Material Stainless Steel
Type Mobile Concrete Batching Plant, Modular Concrete Mixing Machine, Concrete Mixing Plant
Weight (kg) 7600 Kilograms (kg)
Computerized Yes
Automatic Yes
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Price And Quantity

Price 2000000 INR/Set
Price Range 1900000.00 - 2200000.00 INR/Set
Minimum Order Quantity 1 Set

Product Specifications

Power Source Hydraulic
Computerized Yes
Product Type Stationary Concrete Batching Plant
Power Consumption 32.5 Kilowatt (kW)
General Use Construction
Mixing Drum Speed 20 RPM
Material Stainless Steel
Warranty 1
Storage Capacity 4 Bins of 3 CuM each Cubic Meter (m3)
Weight (kg) 7600 Kilograms (kg)
Type Mobile Concrete Batching Plant, Modular Concrete Mixing Machine, Concrete Mixing Plant
Hopper Quantity 2 Pairs
Automatic Yes
Hopper Capacity 500 Kg hopper for cement Kilogram(Kg)
Dimension(L*W*H) 700*400*500 Centimeter (cm)

Trade Information

Supply Ability 10 Set Per Day
Delivery Time Days
Main Domestic Market All India
Certifications CE and TUV

Product Description

Stationary Concrete Batching Plant

Stationary Concrete Batching Plant consist of a series of construction machineries for combining of various types of ingredients such as rocks, gravel, aggregate, sand, admixtures, fly ash, silica fume, slag, cement, water, air and many more that are used for the production of high quality concrete mixtures. Stationary Concrete Batching Plant is made up of components like mixers, cement bins, heaters, chillers, silos, control unit and dust collectors. It is designed and developed with the help of modern production techniques which ensure excellent performance and reliability. It is capable to produce a large amount of mixture in a lesser amount of time which results in increased production.

Product details

Batch Capacity	0.56 m3
Drum Speed	20 Rpm
Dry Capacity	1400 Ltr
Mixer Output	16 to 18 m3 per hr
Skip Motor	32.5 Hp
Model/Type	ABP 18
Brand/Make	JAYPEE

Specifications:

Compacted Concrete: 16 to 18 m3 per hr
Mixer Capacity: 0.56 m3
Input/output Capacity: 750/500 Liter
Motor Power: 32.5 HP
Diameter: 219 mm
Connected Power: 12.5 HP
No. Of Compartments: 4

Enter Buying Requirement Details

+ Add Attachment

Email Id

Mobile number

Please Wait...

Other Products in 'BATCHING PLANT' category

Jaypee Automatic Batching Plant-18 (Reversible-Drum) Minimum Order Quantity : 1 General Use : Construction Material : Stainless Steel Price : 2000000 INR/Set Hopper Capacity : 500 Kilogram(Kg) Warranty : 1 Product Type : Automatic Batching Plant Power Consumption : 32.5 Kilowatt (kW) Power Source : Electric Computerized : Yes Automatic : Yes Mixing Drum Speed : 20 RPM Weight (kg) : 70600 Kilograms (kg) Hopper Quantity : 2 Unit Control System : PLC Control Color : Customized Storage Capacity : 12 Cubic Meter (m3) Dimension(L*W*H) : 700*400*500 Centimeter (cm) Conveyor Capacity : 1000 Kg/hr Voltage : 15 Horsepower (HP)

Send Inquiry

Jaypee Electric Automatic Batching Plant (Reversible-Pan) Minimum Order Quantity : 1 General Use : Construction Material : Stainless Steel Price : 1999999.00 INR/Piece Hopper Capacity : 12 Cubic Meter (m3) Warranty : 1 Product Type : Automatic Batching Plant Power Consumption : 40 Kilowatt (kW) Power Source : Electric Computerized : Yes Automatic : Yes Mixing Drum Speed : 32 RPM Weight (kg) : 70600 Kilograms (kg) Hopper Quantity : 4 Sets Control System : PLC Control Color : Customized Storage Capacity : 850 Liter (L) Dimension(L*W*H) : 700*400*500 Centimeter (cm) Conveyor Capacity : 1000 Kg/day Voltage : 20 Horsepower (HP)

Send Inquiry

Automatic Batching Plant 20 (PAN) Minimum Order Quantity : 1 General Use : Industrial, Construction Material : Cast Iron Price : 2000000.00 INR/Set Hopper Capacity : 500 Kg hopper for cement Kilogram(Kg) Warranty : 1 Product Type : Automatic Batching Plant 20 (PAN) Power Consumption : 40 Kilowatt (kW) Power Source : Electric Computerized : Yes Automatic : Yes Mixing Drum Speed : 32 RPM Weight (kg) : 70600 Kilograms (kg) Hopper Quantity : 2 Pairs Control System : PLC Control Color : Gray Dimension(L*W*H) : 700*400*300 Centimeter (cm) Type : Concrete Mixing Plant, Mobile Concrete Batching Plant, Modular Concrete Mixing Machine Feature : High Efficiency, Low Energy Consumption, Good Quality, Automatic Feeding

Send Inquiry

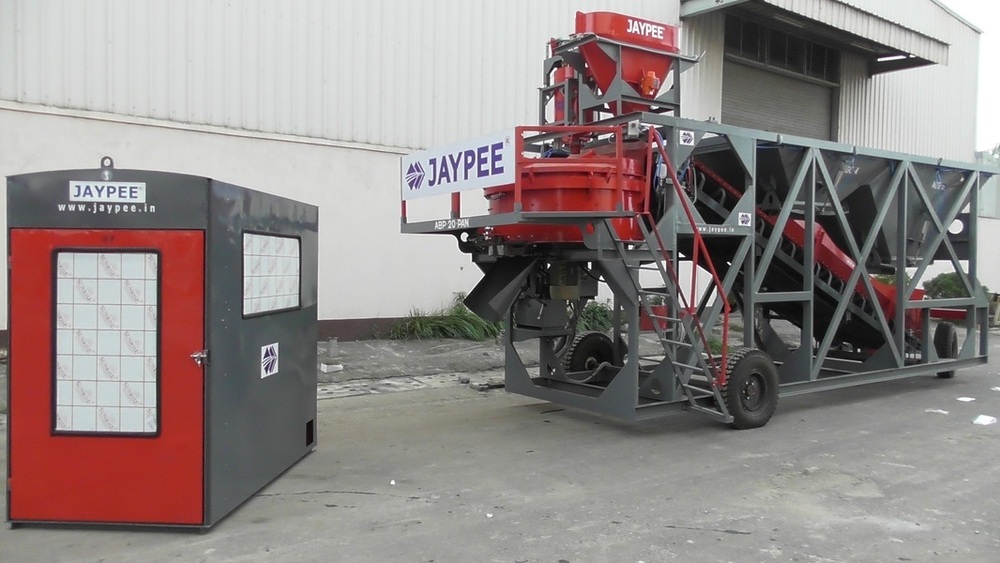

Jaypee Automatic Batching Plant(PAN) Minimum Order Quantity : 1 General Use : Construction Material : Stainless Steel Price : 2000000.00 INR/Piece Hopper Capacity : Howrah Cubic Meter (m3) Warranty : 1 Product Type : Batching Plant Power Consumption : 40 Kilowatt (kW) Power Source : Electric Computerized : Yes Automatic : Yes Mixing Drum Speed : 32 RPM Control System : PLC Control Storage Capacity : Howrah Cubic Meter (m3) Conveyor Capacity : Howrah Type : Concrete Mixing Plant, Modular Concrete Mixing Machine Feature : Good Quality, High Efficiency, High Speed, Other, Low Energy Consumption, Automatic Feeding
